Part Image

22-12-4102 - Molex

Description: Molex KK Series, Series Number 7395, 2.54mm Pitch 10 Way 1 Row Right Angle PCB Header, Solder Termination

Download 22-12-4102 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
22-12-4102 - Molex - PCB symbol
click to zoom
PCB Footprints

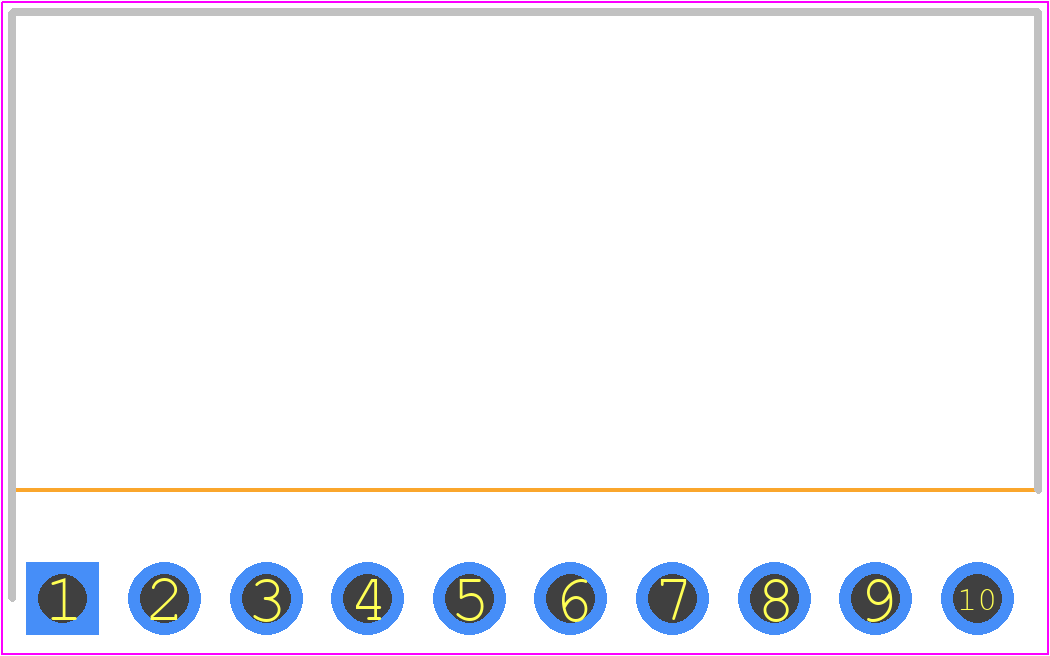

22-12-4102 - Molex PCB footprint - Header, Shrouded - Right Angle PTH Box - Header, Shrouded - Right Angle PTH Box - 22-12-4102
click to zoom
3D Models
22-12-4102 - Molex - 3D model - Header, Shrouded - Right Angle PTH Box - 22-12-4102
click to zoom

22-12-4102 Details

  • Manufacturer Part Number:

    22-12-4102

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LOW HALOGEN, ROHS AND REACH COMPLIANT

  • Country Of Origin:

    India, Ireland, Mainland China, Mexico

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Molex

  • YTEOL:

    9.1

  • Additional Feature:

    POLARIZED

  • Body Breadth:

    0.228 inch

  • Body Depth:

    0.581 inch

  • Body Length:

    1 inch

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    MALE

  • Contact Material:

    BRASS

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    SQ PIN-SKT

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mating Contact Pitch:

    0.1 inch

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    1

  • Number of Rows Loaded:

    1

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • Polarization Key:

    POLARIZED HOUSING

  • Rated Current (Signal):

    4 A

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    10

  • UL Flammability Code:

    94V-0

22-12-4102 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.5-1.5 N·m (4.4-13.3 in·lb) for the screws on the 22-12-4102 connector, as specified in the Molex application notes.
  • Yes, the 22-12-4102 connector is designed to withstand vibrations up to 10G (10 Hz to 2 kHz) and can be used in high-vibration applications, but it's recommended to follow Molex's guidelines for vibration testing and to consult with a Molex representative for specific application requirements.
  • Yes, the 22-12-4102 connector is compatible with lead-free soldering processes, as it is made with lead-free materials and is designed to meet the requirements of the RoHS (Restriction of Hazardous Substances) directive.
  • The maximum operating temperature for the 22-12-4102 connector is 125°C (257°F), as specified in the datasheet. However, it's recommended to consult with a Molex representative for specific application requirements and to ensure the connector meets the required temperature ratings.
  • The 22-12-4102 connector is designed to meet the requirements of the IEC 60529 standard for ingress protection (IP) and can withstand humid or wet environments, but it's recommended to follow Molex's guidelines for environmental testing and to consult with a Molex representative for specific application requirements.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

22-12-4102 Overview

Use the download button to access the 22-12-4102 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 22-12, or try a keyword search, such as Headers and Edge Type Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
