22-12-4112 - Molex

Description: KK 254 Wire-to-Board Header, Right-Angle, with Friction Lock, 11 Circuits

Download 22-12-4112 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
22-12-4112 - Molex - PCB symbol
click to zoom
PCB Footprints

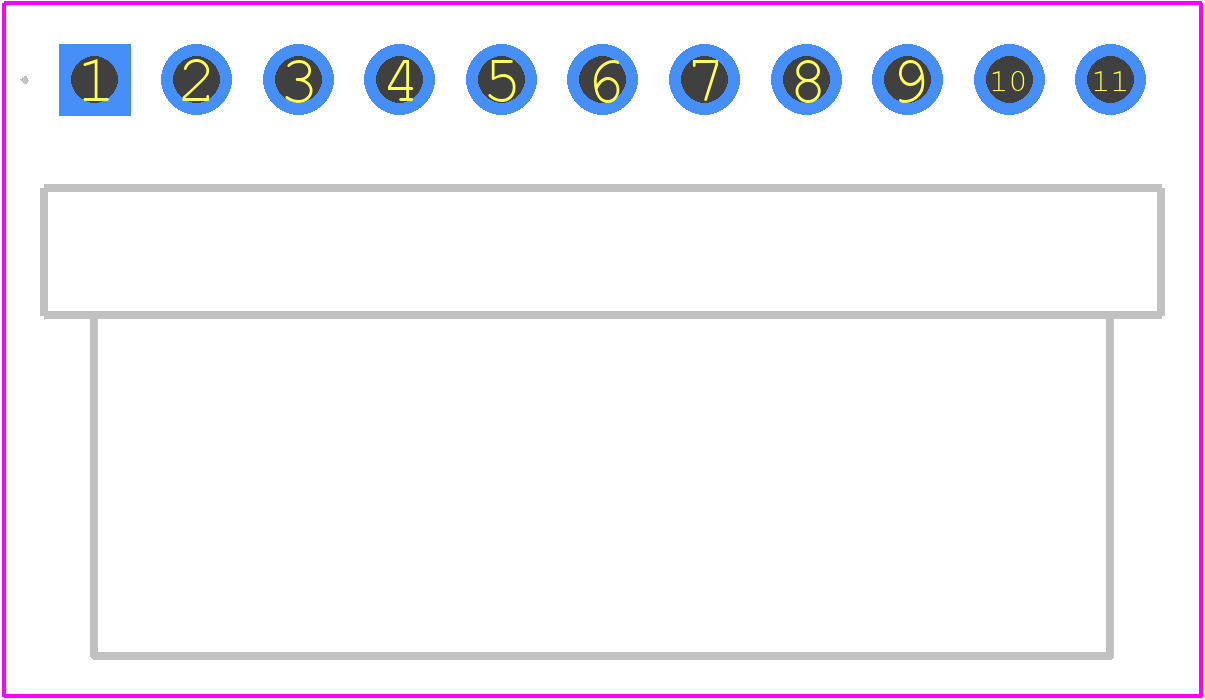

22-12-4112 - Molex PCB footprint - Other - Other - 22-12-4112-3
click to zoom
3D Models
22-12-4112 - Molex - 3D model - Other - 22-12-4112-3
click to zoom

22-12-4112 Details

  • Manufacturer Part Number:

    22-12-4112

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    India, Ireland, Mainland China, Mexico

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Molex

  • YTEOL:

    9.1

  • Additional Feature:

    POLARIZED

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    MALE

  • Contact Material:

    BRASS

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    1

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    11

  • UL Flammability Code:

    94V-0

22-12-4112 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.5-1.5 N·m (4-12 in·lb) for the screws on the 22-12-4112 connector, as specified in the Molex application notes.
  • Yes, the 22-12-4112 connector is designed to withstand vibrations up to 10 G (98 m/s²) in the frequency range of 10-2000 Hz, making it suitable for high-vibration applications.
  • The operating temperature range for the 22-12-4112 connector is -40°C to 105°C (-40°F to 221°F), as specified in the Molex datasheet.
  • Yes, the 22-12-4112 connector is compatible with lead-free soldering processes, with a peak reflow temperature of 260°C (500°F) for a maximum of 20 seconds.
  • The mating cycle life of the 22-12-4112 connector is a minimum of 500 cycles, as specified in the Molex datasheet.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

22-12-4112 Overview

Use the download button to access the 22-12-4112 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 22-12, or try a keyword search, such as Headers and Edge Type Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
