22-23/R6GHBHC-A01/2C - Everlight

Description: LED Tri-Color Blue/Green/Red 468nm/518nm/632nm 4-Pin T/R - Tape and Reel

Download 22-23/R6GHBHC-A01/2C Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

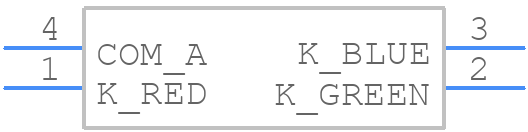

22-23/R6GHBHC-A01/2C - Everlight - PCB symbol
click to zoom
PCB Footprints
22-23/R6GHBHC-A01/2C - Everlight PCB footprint - Other - Other - 22-23/R6GHBHC-A01/2C-2
click to zoom

22-23/R6GHBHC-A01/2C Details

  • Manufacturer Part Number:

    22-23/R6GHBHC-A01/2C

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.40.20.00

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    Everlight Electronics Co Ltd

  • YTEOL:

    0

  • Color:

    BRILLIANT RED/BRILLIANT GREEN/BLUE

  • Color@Wavelength:

    Blue/Bl-Gr/Or-Red

  • Configuration:

    COMMON ANODE, 3 ELEMENTS WITH BUILT-IN DIODE

  • Forward Current-Max:

    0.025 A

  • Forward Voltage-Max:

    2.4 V

  • Lens Type:

    WATER CLEAR

  • Luminous Intensity-Min:

    120 cd

  • Luminous Intensity-Nom:

    72.0/180.0/45.0 mcd

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    TRIPLE COLOR LED

  • Overall Height:

    1.35 mm

  • Packing Method:

    TR, 7 INCH

  • Peak Wavelength:

    632/518/468 nm

  • Reverse Voltage-Max:

    5 V

  • Shape:

    RECTANGULAR

  • Size:

    2 mm

  • Surface Mount:

    YES

  • Viewing Angle:

    120 deg

22-23/R6GHBHC-A01/2C Frequently Asked Questions (FAQs)

  • The recommended storage temperature for the 22-23/R6GHBHC-A01/2C LED is -20°C to 30°C, with a relative humidity of 60% or less.
  • Yes, the 22-23/R6GHBHC-A01/2C LED is suitable for outdoor applications, but it's recommended to use a suitable encapsulant or coating to protect it from moisture and UV radiation.
  • The maximum forward current that can be applied to the 22-23/R6GHBHC-A01/2C LED is 30mA, but it's recommended to operate it at a current of 20mA or less to ensure reliability and longevity.
  • Yes, the 22-23/R6GHBHC-A01/2C LED is compatible with lead-free soldering processes, with a peak reflow temperature of 260°C.
  • The typical luminous intensity of the 22-23/R6GHBHC-A01/2C LED is 12,000-14,000 mcd, with a viewing angle of 120°.
