Hong Kong SAR, India, Indonesia, Mainland China, Mexico, Puerto Rico, Singapore
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
11 Weeks
Manufacturer:
Molex
YTEOL:
10
Additional Feature:
KK
Body Breadth:
0.25 inch
Body Depth:
0.322 inch
Body Length:
1.994 inch
Body/Shell Style:
RECEPTACLE
Connector Type:
BOARD CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Finish Termination:
NOT APPLICABLE
Contact Gender:
MALE
Contact Material:
NOT SPECIFIED
Contact Pattern:
RECTANGULAR
Contact Resistance:
10 mΩ
Contact Style:
SQ PIN-SKT
DIN Conformance:
NO
Filter Feature:
NO
IEC Conformance:
NO
Insertion Force-Max:
1.946 N
Insulation Resistance:
1000000000 Ω
Insulator Color:
WHITE
Insulator Material:
POLYAMIDE
MIL Conformance:
NO
Mating Contact Pitch:
0.1 inch
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Option 1:
FRICTION LOCK
Mounting Option 2:
LOCKING
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number Of PCB Rows:
1
Number of Rows Loaded:
1
Operating Temperature-Max:
80 °C
Operating Temperature-Min:
-40 °C
Option:
GENERAL PURPOSE
PCB Contact Pattern:
RECTANGULAR
Plating Thickness:
100u inch
Rated Current (Signal):
4 A
Reference Standard:
UL
Terminal Length:
0.14 inch
Terminal Pitch:
2.54 mm
Termination Type:
SOLDER
Total Number of Contacts:
20
UL Flammability Code:
94V-0
22-23-2201 Frequently Asked Questions (FAQs)
The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs).
Yes, the 22-23-2201 connector is designed to withstand vibrations and is suitable for use in high-vibration environments.
The operating temperature range for the 22-23-2201 connector is -40°C to 105°C (-40°F to 221°F).
Yes, the 22-23-2201 connector is designed for automated assembly and can be used with pick-and-place machines.
The maximum current rating for the 22-23-2201 connector is 3A per contact.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
22-23-2201 Overview

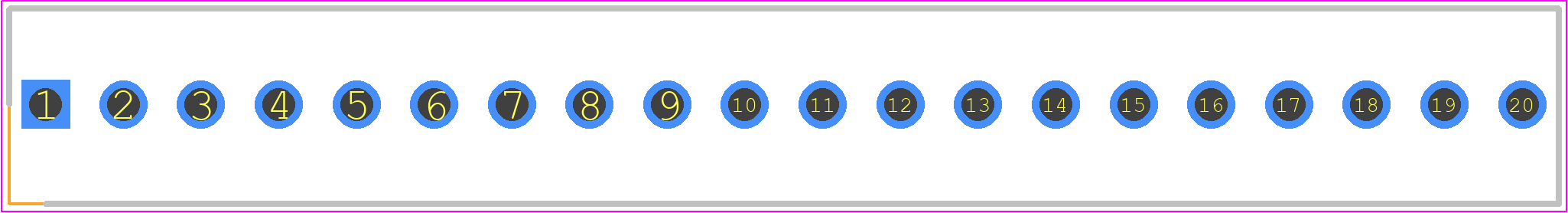

Use the download button to access the 22-23-2201 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 22-23,
or try a keyword search, such as Headers and Edge Type Connectors
