220-3342-00-0602J - 3M

Description: 20 way 3M std ZIF DIP socket,0.3in pitch 3M Textool 2.54mm Pitch Vertical 20 Way, Through Hole Closed Frame ZIF IC Dip Socket, 1A

Download 220-3342-00-0602J Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
220-3342-00-0602J - 3M - PCB symbol
click to zoom
PCB Footprints

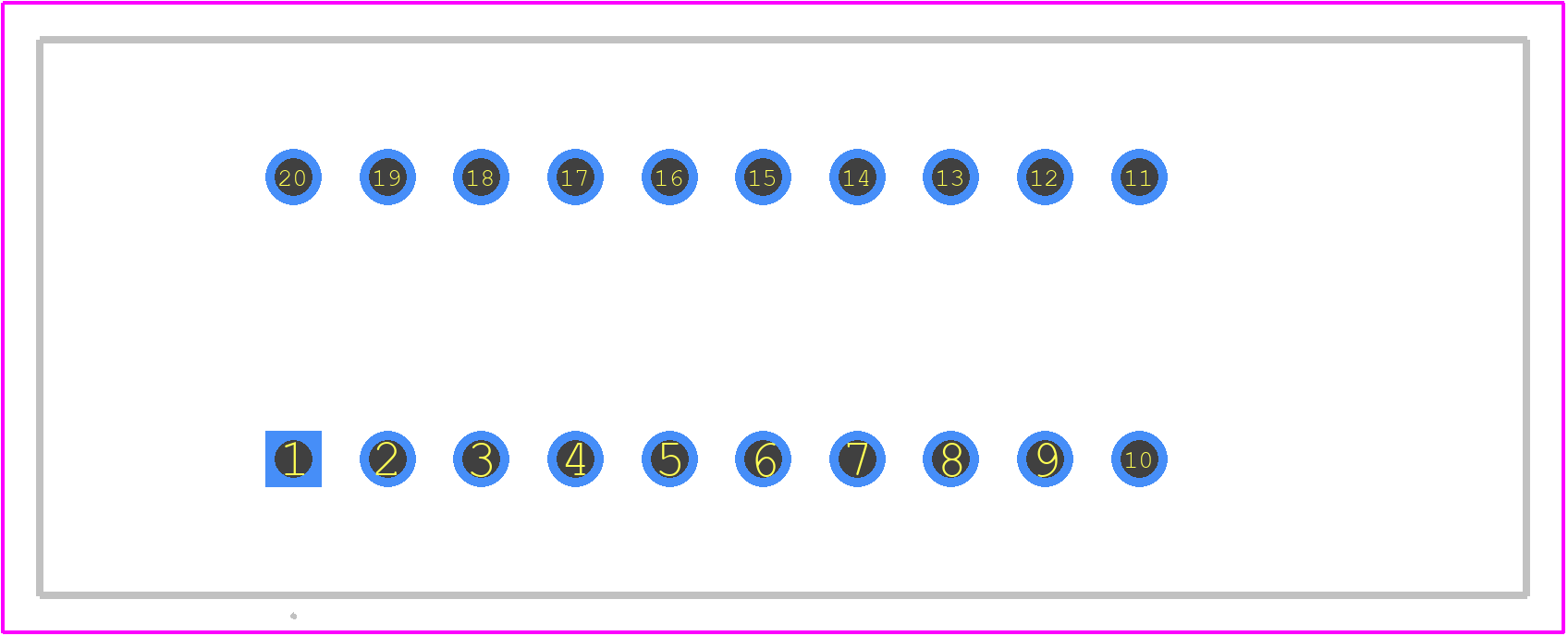

220-3342-00-0602J - 3M PCB footprint - Other - Other - 220-3342-00-0602J-8
click to zoom
3D Models
220-3342-00-0602J - 3M - 3D model - Other - 220-3342-00-0602J-8
click to zoom

220-3342-00-0602J Details

  • Manufacturer Part Number:

    220-3342-00-0602J

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    3M Interconnect

  • YTEOL:

    7

  • Additional Feature:

    STANDARD: UL 94V-0

  • Contact Finish Mating:

    GOLD (30) OVER NICKEL (50)

  • Contact Finish Termination:

    GOLD (30) OVER NICKEL (50)

  • Contact Material:

    BERYLLIUM COPPER

  • Device Socket Type:

    IC SOCKET

  • Device Type Used On:

    DIP20

  • Housing Material:

    GLASS FILLED POLYSULFONE

  • JESD-609 Code:

    e4

  • Number of Contacts:

    20
