2200SB-50G-A1 - Multicomp Pro

Description: PCB Receptacle, Board-to-Board, 1.27 mm, 2 Rows, 50 Contacts, Through Hole Mount, 220SB

Download 2200SB-50G-A1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2200SB-50G-A1 - Multicomp Pro - PCB symbol
click to zoom
PCB Footprints

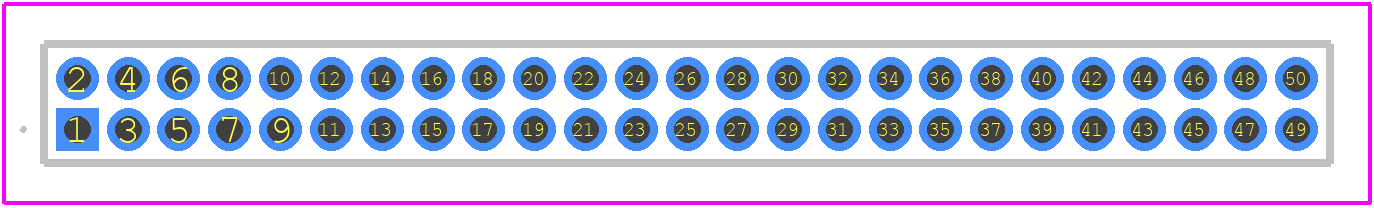

2200SB-50G-A1 - Multicomp Pro PCB footprint - Other - Other - 2200SB-50G-A1-4
click to zoom
3D Models
2200SB-50G-A1 - Multicomp Pro - 3D model - Other - 2200SB-50G-A1-4
click to zoom

2200SB-50G-A1 Details

  • Manufacturer Part Number:

    2200SB-50G-A1

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    SPC Multicomp

  • YTEOL:

    9.15

  • Body/Shell Style:

    SOCKET

  • Connector Type:

    BOARD CONNECTOR

  • Contact Gender:

    FEMALE

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    1.27 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    50

2200SB-50G-A1 Frequently Asked Questions (FAQs)

  • The operating temperature range of the 2200SB-50G-A1 is -40°C to +125°C.
  • Yes, the 2200SB-50G-A1 is RoHS (Restriction of Hazardous Substances) compliant, meaning it meets the EU's standards for reducing hazardous substances in electronic components.
  • The recommended storage temperature for the 2200SB-50G-A1 is -40°C to +30°C, and the recommended storage humidity is 60% RH or less.
  • Yes, the 2200SB-50G-A1 is designed to withstand high-vibration environments, making it suitable for use in applications such as industrial control systems, automotive systems, and more.
  • The typical lead time for delivery of the 2200SB-50G-A1 varies depending on the supplier and the quantity ordered, but it is typically around 2-4 weeks.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

2200SB-50G-A1 Overview

Use the download button to access the 2200SB-50G-A1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 2200S, or try a keyword search, such as Headers and Edge Type Connectors
