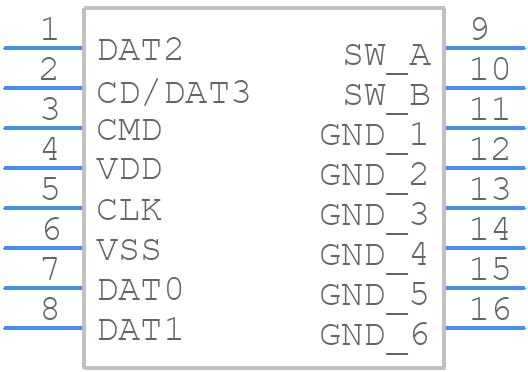

2201778-1 - TE Connectivity

2201778-1 Details

• Manufacturer Part Number:

  2201778-1

• Brand Name:

  TE Connectivity

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.40

• Manufacturer:

  TE Connectivity

• Body Breadth:

  0.065 inch

• Body Depth:

  0.065 inch

• Body Length:

  0.549 inch

• Connector Type:

  PCB CONNECTOR

• Contact Finish Mating:

  NOT APPLICABLE

• Contact Gender:

  FEMALE

• Contact Material:

  NOT APPLICABLE

• Contact Pattern:

  RECTANGULAR

• Contact Resistance:

  80 mΩ

• Contact Style:

  COMPRESSION

• DIN Conformance:

  NO

• Durability:

  10000 Cycles

• EMI Shielded:

  NO

• Empty Shell:

  YES

• Filter Feature:

  NO

• IEC Conformance:

  NO

• Insulation Resistance:

  100000000 Ω

• Insulator Color:

  BLACK

• Insulator Material:

  LIQUID CRYSTAL POLYMER

• MIL Conformance:

  NO

• Mains Connector Rating:

  .5A

• Mating Contact Pitch:

  0.04 inch

• Mating Information:

  MULTIPLE MATING PARTS AVAILABLE

• Mixed Contacts:

  NO

• Mounting Option 1:

  LOCKING

• Mounting Style:

  RIGHT ANGLE

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  1

• Number of Ports:

  1

• Number of Rows Loaded:

  1

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -30 °C

• Option:

  GENERAL PURPOSE

• PCB Contact Pattern:

  RECTANGULAR

• Panel Mount:

  NO

• Rated Current (Signal):

  0.5 A

• Reference Standard:

  UL

• Shell Material:

  COPPER ALLOY

• Terminal Pitch:

  1.1 mm

• Termination Type:

  SURFACE MOUNT

• Total Number of Contacts:

  8

• UL Flammability Code:

  94V-0
