Part Image

2201788 - Phoenix Contact

Description: HSCH 2,5-3U/12 9005 - PCB headers, nominal cross section: 2.5 mm<sup>2</sup>, color: black, nominal current: 8 A, rated voltage (III/2): 320 V, contact surface: Sn, contact connection type: Pin, number of potentials: 12, number of rows: 2, number of positions: 12, number of connections: 12, product range: HSCH 2,5/..-G, pitch: 5 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.8 mm, number of solder pins per potential: 1, plug-in system: HSC 2,5, Pin connector pattern alignment: S

Download 2201788 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2201788 - Phoenix Contact - PCB symbol
click to zoom

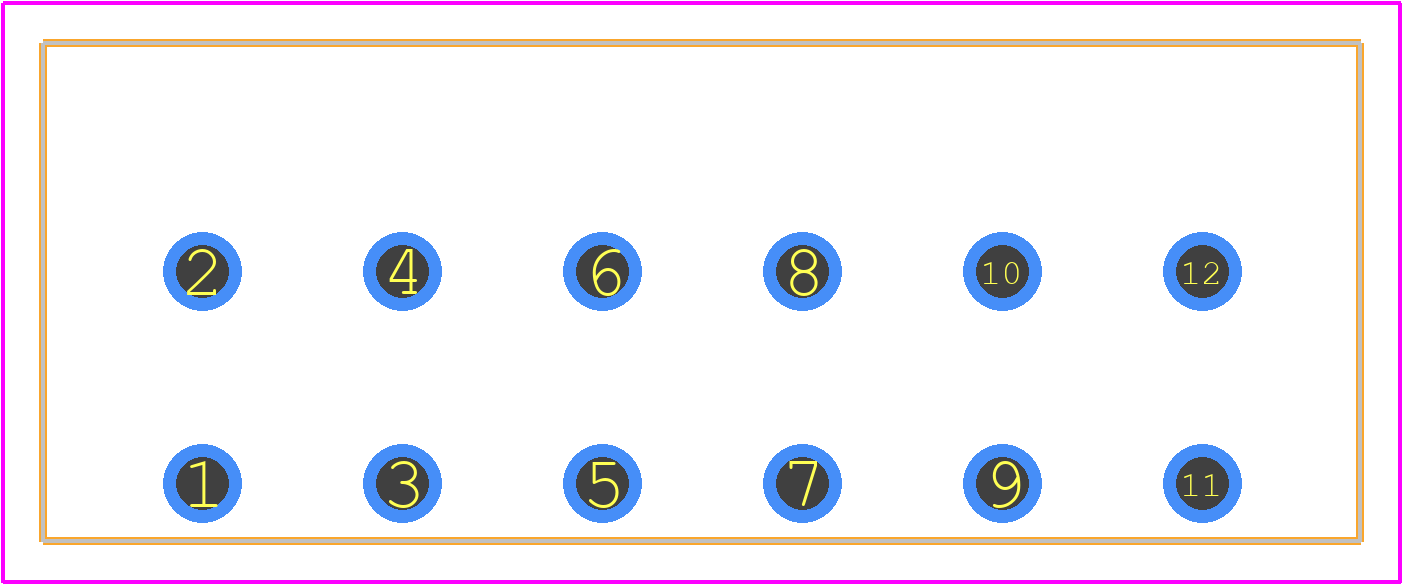

PCB Footprints
2201788 - Phoenix Contact PCB footprint - Other - Other - 2201788-1
click to zoom
3D Models
2201788 - Phoenix Contact - 3D model - Other - 2201788-1
click to zoom

2201788 Details

  • Manufacturer Part Number:

    2201788

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

2201788 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.6 Nm to 1.2 Nm, as specified in the Phoenix Contact's general technical guidelines for screw connections.
  • Yes, the 2201788 connector is designed to withstand vibrations up to 10 g according to IEC 60068-2-6, making it suitable for use in high-vibration environments.
  • Yes, the 2201788 connector has a protection rating of IP67, which means it is protected against dust and water ingress, making it suitable for outdoor use.
  • It is not recommended to use a wire gauge that is not specified in the datasheet, as it may affect the connector's performance and reliability. However, Phoenix Contact provides a wire gauge range of 0.5 mm² to 2.5 mm² for this connector.
  • Yes, the 2201788 connector is part of the Phoenix Contact's COMBI connector series, which is designed to be compatible with other products in the series, such as the 2201789 and 2201790 connectors.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

2201788 Overview

Use the download button to access the 2201788 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 22017, or try a keyword search, such as Terminals and Terminal Blocks

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
