2202500069 - Molex

Description: SlimStack Board-to-Board Receptacle, 0.35mm Pitch, 0.70mm Height, GCB7V Series, 6 Signal Pin + 2 Power Pin + 2 Fitting Nail, 18A Battery B-to-B

Download 2202500069 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

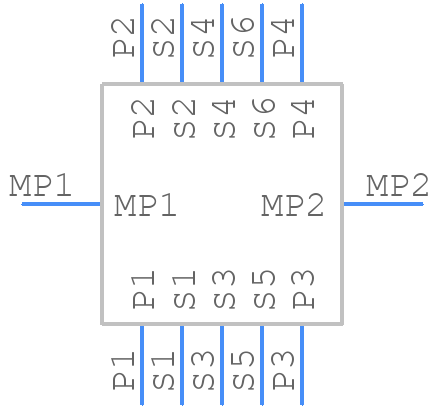

2202500069 - Molex - PCB symbol
click to zoom
PCB Footprints
2202500069 - Molex PCB footprint - Other - Other - 2202500069-3
click to zoom
3D Models
2202500069 - Molex - 3D model - Other - 2202500069-3
click to zoom

2202500069 Details

  • Manufacturer Part Number:

    2202500069

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Molex

  • YTEOL:

    9

  • Additional Feature:

    STANDARD: IEC-62474

  • Board Mounting Option:

    FITTING NAIL

  • Body Breadth:

    0.091 inch

  • Body Depth:

    0.025 inch

  • Body Length:

    0.201 inch

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    BOARD STACKING CONNECTOR

  • Contact Finish Termination:

    Gold (Au)

  • Contact Gender:

    MALE

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    CENTRONIC

  • Durability:

    10 Cycles

  • Filter Feature:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • JESD-609 Code:

    e4

  • Mating Contact Pitch:

    0.014 inch

  • Mating Information:

    2202510069

  • Mixed Contacts:

    YES

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    2.14 mm

  • Plating Thickness:

    4u inch

  • Rated Current (Power):

    18 A

  • Rated Current (Signal):

    0.3 A

  • Reference Standard:

    IEC; UL

  • Terminal Pitch:

    0.35 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    8

  • UL Flammability Code:

    94V-0

2202500069 Frequently Asked Questions (FAQs)

  • The recommended mating cycle for the 2202500069 connector is 50 cycles minimum, according to Molex's general specifications.
  • While the datasheet doesn't explicitly mention vibration resistance, Molex's similar connectors are designed to withstand vibrations up to 10G (98m/s²) according to IEC 60068-2-6. However, it's recommended to consult with Molex or a qualified engineer for specific application guidance.
  • The 2202500069 connector has an operating temperature range of -40°C to 105°C. However, the temperature rating may vary depending on the specific application, such as high-temperature storage or extreme environmental conditions. Consult with Molex for specific guidance.
  • The recommended torque for securing the screw terminals on the 2202500069 connector is typically between 0.5 Nm to 1.5 Nm. However, it's essential to consult the specific datasheet or Molex's application notes for the recommended torque value.
  • The 2202500069 connector is designed for manual assembly, but it may be possible to use it in automated assembly processes. Consult with Molex or a qualified engineer to determine the feasibility of automated assembly and any necessary modifications or accommodations.
