2203997-1 - TE Connectivity

Description: Body Features: Product Weight 150 G | Product Weight 5.3 OZ | Contact Features: Relay Terminal Type None | Contact Base Material Copper | Contact Arrangement 1 Form X (NO - DM) | Contact Current Class 1 – 100 AMP | Dimensions: Product Width 1.57 INCH | Product Height 37 MM | Product Length 50 MM | Product Height 1.46 INCH | Height Class (Mechanical) 30 – 40 MM | Product Length 1.97 INCH | Product Width 40 MM | Electrical Characteristics: Operating Voltage 400 VDC | Insulation Initial Dielectric Between

Download 2203997-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2203997-1 - TE Connectivity - PCB symbol
click to zoom

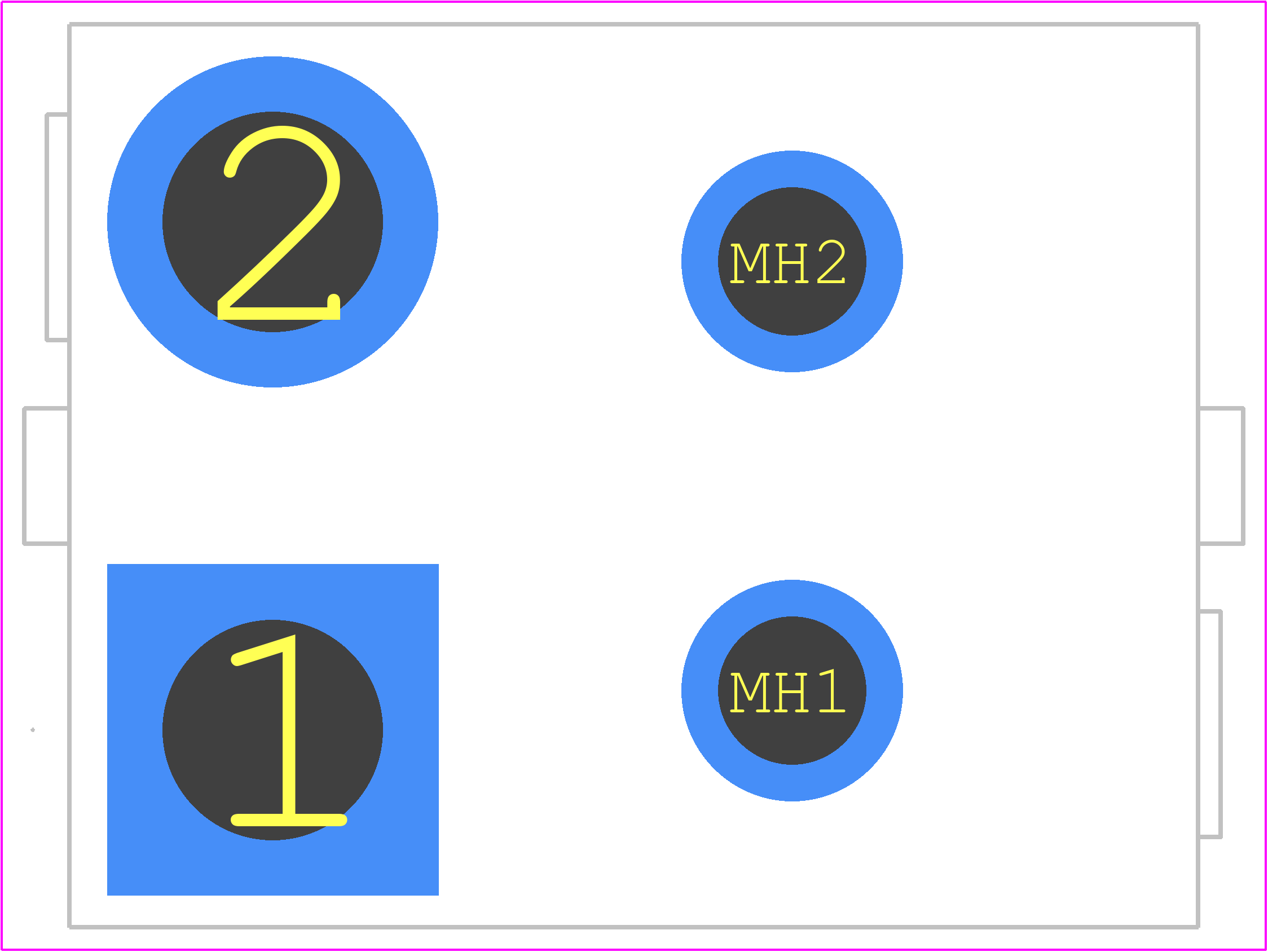

PCB Footprints
2203997-1 - TE Connectivity PCB footprint - Other - Other - 2203997-1-3
click to zoom
3D Models
2203997-1 - TE Connectivity - 3D model - Other - 2203997-1-3
click to zoom

2203997-1 Details

  • Manufacturer Part Number:

    2203997-1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    23 Weeks, 5 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    6

  • Body Breadth:

    40 mm

  • Body Height:

    37 mm

  • Body Length or Diameter:

    50 mm

  • Coil Power:

    3000 mW

  • Coil Resistance:

    21.4 Ω

  • Coil Voltage(DC)-Max:

    12 V

  • Contact Voltage(DC)-Max:

    450 V

  • Dielectric Strength Between Coil and Contacts:

    2920 Vrms

  • Dielectric Strength Between Open Contacts:

    2920 Vrms

  • End Contact Material:

    COPPER ALLOY

  • Mounting Feature:

    PANEL MOUNT

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Relay Action:

    MOMENTARY

  • Relay Form:

    1 FORM X

  • Relay Type:

    POWER/SIGNAL RELAY

  • Surface Mount:

    NO

  • Termination Type:

    SOLDER/QUICK CONNECT

  • Weight:

    150 g

2203997-1 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 2203997-1 connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 vibration standard, making it suitable for use in applications such as industrial control systems, transportation, and more.
  • While the datasheet specifies AWG 24-16 wire sizes, the connector can accommodate other wire sizes with the use of adapters or specialized wire termination tools. However, it's essential to consult with TE Connectivity or a qualified engineer to ensure compatibility and proper termination.
  • The 2203997-1 connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F). This makes it suitable for use in a wide range of applications, from industrial control systems to automotive and aerospace.
  • The 2203997-1 connector has a sealed design that provides protection against moisture and humidity. However, it's essential to consult with TE Connectivity or a qualified engineer to determine the connector's suitability for use in specific harsh environments or exposure to chemicals.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

2203997-1 Overview

Use the download button to access the 2203997-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 22039, or try a keyword search, such as Power/Signal Relays

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
