2204420-9 - TE Connectivity

Description: Rectangular Power Connectors, Header, Receptacle, Board-to-Board, 36 Position, 2 mm / 5 mm [.196 in / .078 in] Centerline, MULTI-BEAM HD

Download 2204420-9 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2204420-9 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

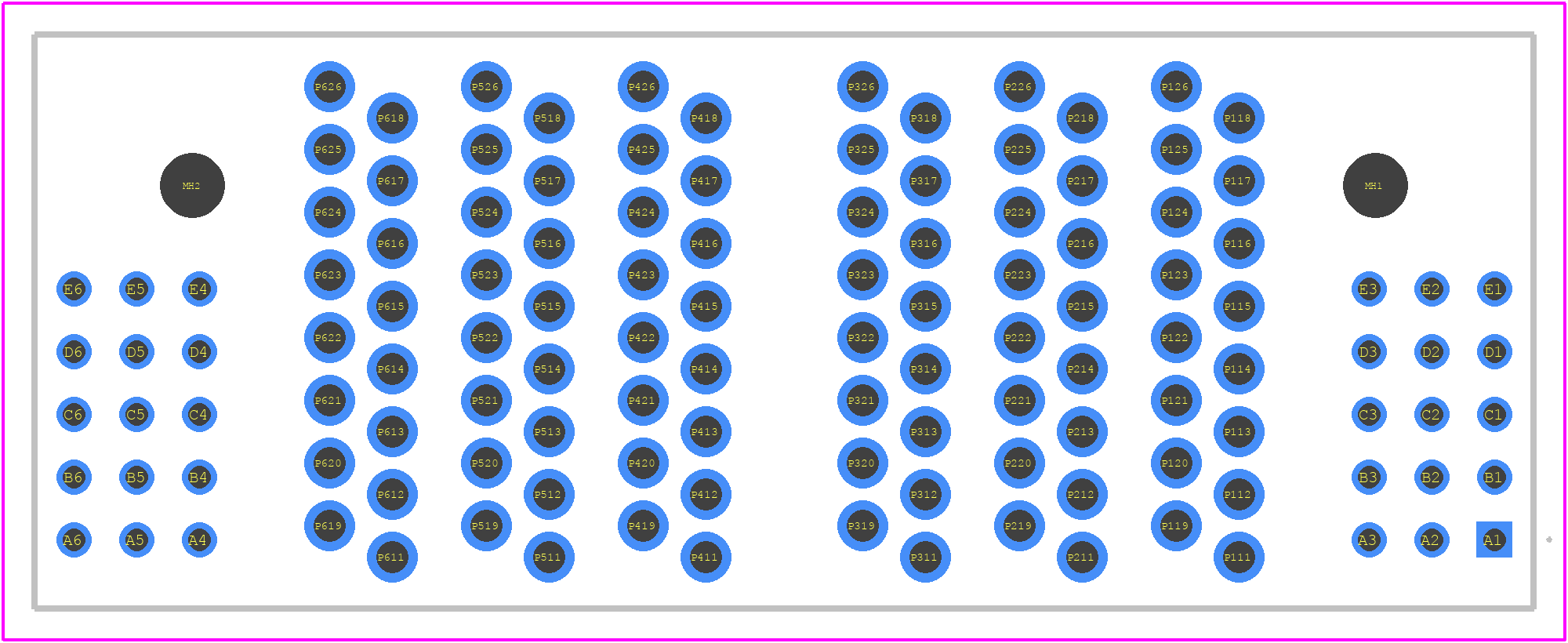

2204420-9 - TE Connectivity PCB footprint - Other - Other - 2204420-9-3
click to zoom
3D Models
2204420-9 - TE Connectivity - 3D model - Other - 2204420-9-3
click to zoom

2204420-9 Details

  • Manufacturer Part Number:

    2204420-9

  • Brand Name:

    AMP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    8 Weeks, 5 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    8.55

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Arrangement:

    S30P6

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    POLYETHYLENE

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    558A

  • Mating Contact Row Spacing:

    0.079 inch

  • Mixed Contacts:

    YES

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Number of Rows Loaded:

    5

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Plating Thickness:

    3u inch

  • Rated Current (Signal):

    558 A

  • Rated Voltage:

    60 V

  • Reference Standard:

    UL

  • Terminal Length:

    0.126 inch

  • Terminal Pitch:

    2 mm

  • Termination Type:

    PRESS FIT

  • Total Number of Contacts:

    36

  • UL Flammability Code:

    94V-0

2204420-9 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow this range to ensure reliable connections and prevent damage to the connector.
  • Yes, the 2204420-9 connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels. However, it's essential to follow proper mounting and installation procedures to ensure the connector remains secure.
  • While the datasheet specifies AWG 20-18 wire sizes, the connector can accommodate smaller wire sizes with the use of wire adapters or terminals. However, it's crucial to ensure the wire size and type meet the connector's electrical and mechanical requirements.
  • The 2204420-9 connector is rated for operation in temperatures ranging from -40°C to 125°C (-40°F to 257°F). It's essential to ensure the connector is used within this range to maintain its electrical and mechanical performance.
  • The 2204420-9 connector has a sealed design that provides some level of protection against environmental factors. However, it's not designed for use in extremely harsh environments. If you need to use the connector in such conditions, consider using additional protective measures, such as conformal coatings or environmental seals.
