- Part Number 2204443-1
- Manufacturer TE Connectivity
- Pin Count 32
- Part Category Connector
- Package Category Other
- Footprint Name Other - 2204443-1-1
- Released Date Jul 27, 2021
- Last Modified Date Dec 15, 2024 10:37 PM UTC
- Pinout / Pin List Click Here (Member Only)
2204443-1 Details
-
Manufacturer Part Number:
2204443-1
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.30
-
Factory Lead Time:
6 Weeks, 6 Days
-
Manufacturer:
TE Connectivity
-
YTEOL:
7.27
-
Body/Shell Style:
PLUG
-
Connector Type:
RECTANGULAR POWER CONNECTOR
-
Contact Finish Mating:
NOT APPLICABLE
2204443-1 Frequently Asked Questions (FAQs)
-
The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this value to ensure proper connection and prevent damage to the connector.
-
While the connector is designed to be environmentally sealed, it's not intended for direct exposure to harsh outdoor conditions. However, it can be used in outdoor applications if properly protected with additional sealing or enclosures.
-
While the connector is designed for AWG 20-24 wires, it's possible to use it with other wire sizes. However, this may affect the connector's performance and reliability. It's recommended to consult with TE Connectivity or a qualified engineer to determine the suitability of the connector for your specific wire size.
-
The operating temperature range for the 2204443-1 connector is -40°C to 125°C (-40°F to 257°F). It's essential to ensure that the connector is used within this temperature range to maintain its performance and reliability.
-
Yes, the 2204443-1 connector is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, making it suitable for use in a wide range of applications.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
2204443-1 Overview

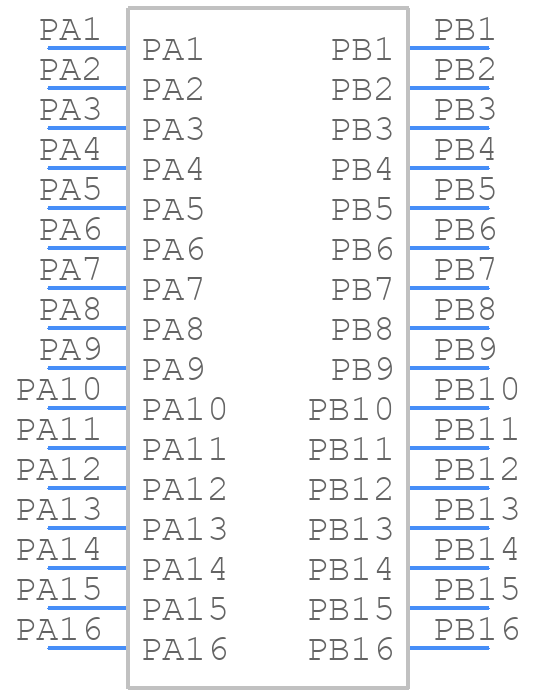

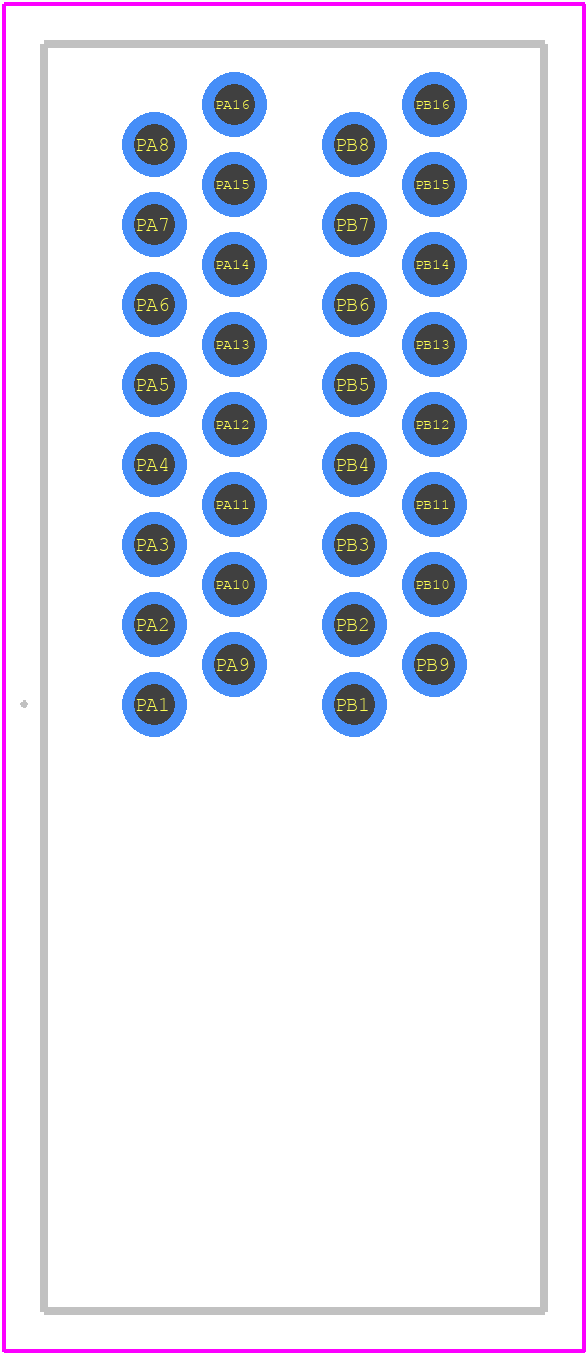

Use the download button to access the 2204443-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 22044,
or try a keyword search, such as Power Connectors
