Part Image

2204585-4 - TE Connectivity

Description: Rectangular Power Connectors, Connector Assembly, Receptacle, Wire-to-Board, 3 Position, 5.7 mm [.224 in] Centerline, ELCON Mini

Download 2204585-4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2204585-4 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

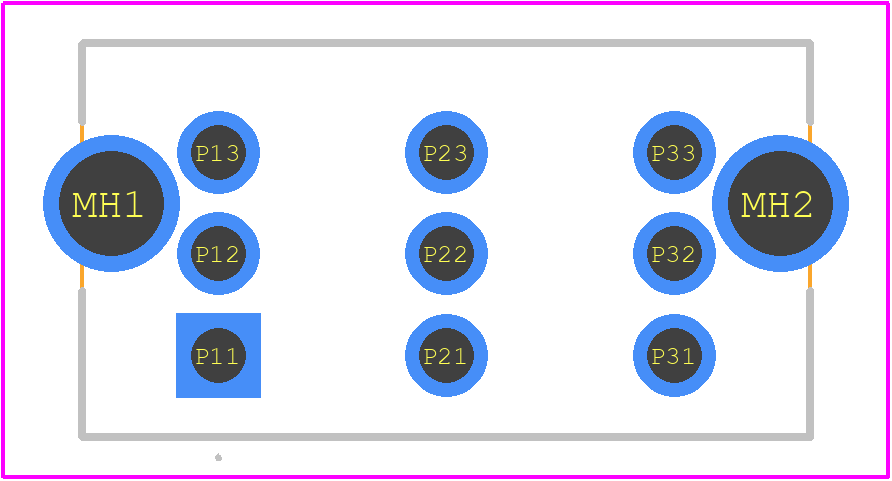

2204585-4 - TE Connectivity PCB footprint - Other - Other - 2204585-4-2
click to zoom
3D Models
2204585-4 - TE Connectivity - 3D model - Other - 2204585-4-2
click to zoom

2204585-4 Details

  • Manufacturer Part Number:

    2204585-4

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    7

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    GLASS FILLED LIQUID CRYSTAL POLYMER

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    35A

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Plating Thickness:

    118.11u inch

  • Rated Current (Signal):

    35 A

  • Rated Voltage:

    400 V

  • Reference Standard:

    UL

  • Terminal Pitch:

    5.7 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    3

  • UL Flammability Code:

    94V-0

2204585-4 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this value to ensure proper connection and prevent damage to the connector.
  • Yes, the 2204585-4 connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 vibration standard, making it suitable for use in applications such as rail, industrial, and automotive.
  • The 2204585-4 connector has a IP67 rating, which means it is protected against dust and water ingress. However, it's essential to ensure proper sealing and installation to maintain the IP67 rating. Additionally, the connector's materials are resistant to UV and salt spray, making it suitable for outdoor use.
  • While the datasheet specifies 24-18 AWG wire sizes, the connector can accommodate other wire sizes with some limitations. However, it's essential to consult with TE Connectivity's application engineers or perform thorough testing to ensure reliable connections and meet specific application requirements.
  • The 2204585-4 connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F). This range makes it suitable for use in various applications, including industrial, automotive, and rail.
