2212S-22SG-85 - Multicomp Pro

Description: 2.54mm PCB Socket Single Row Straight, 22 Way

Download 2212S-22SG-85 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2212S-22SG-85 - Multicomp Pro - PCB symbol
click to zoom
PCB Footprints

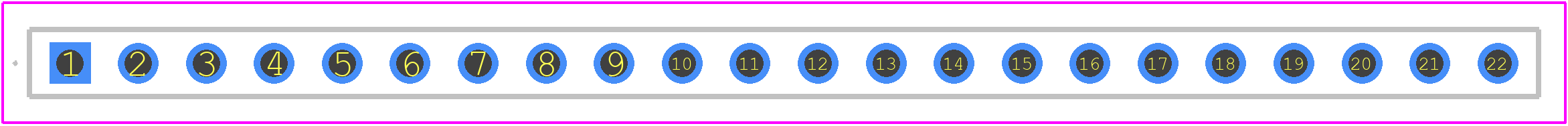

2212S-22SG-85 - Multicomp Pro PCB footprint - Other - Other - 2212S-22SG-85
click to zoom
3D Models
2212S-22SG-85 - Multicomp Pro - 3D model - Other - 2212S-22SG-85
click to zoom

2212S-22SG-85 Details

  • Manufacturer Part Number:

    2212S-22SG-85

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    SPC Multicomp

  • YTEOL:

    9

  • Body/Shell Style:

    SOCKET

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    SILVER

  • Contact Finish Termination:

    SILVER

  • Contact Gender:

    FEMALE

  • Contact Material:

    COPPER ALLOY

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    1

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    22

2212S-22SG-85 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for the 2212S-22SG-85 is between 250°C to 260°C, with a maximum exposure time of 3 seconds.
  • Yes, the 2212S-22SG-85 is RoHS (Restriction of Hazardous Substances) compliant, meaning it meets the EU's standards for reducing hazardous substances in electronic components.
  • The operating temperature range for the 2212S-22SG-85 is -40°C to +125°C, making it suitable for a wide range of applications.
  • Yes, the 2212S-22SG-85 is designed to withstand high-vibration environments, making it suitable for applications such as automotive, aerospace, and industrial control systems.
  • The typical lead time for delivery of the 2212S-22SG-85 varies depending on the supplier and the quantity ordered, but it is usually around 2-4 weeks.
