2213738-5 - TE Connectivity

Description: Configuration Features: Number of Power Positions 2 | PCB Mount Orientation Vertical | Number of Rows 1 | Number of Positions 5 | Contact Features: Contact Mating Area Plating Material Thickness 1.18 MICM | PCB Contact Termination Area Plating Material Pre-Tin | Contact Type Pin | Contact Current Rating (Max) 12 AMP | Contact Mating Area Plating Material Tin | Electrical Characteristics: Operating Voltage 600 VAC | Housing Features: Housing Color Black | Housing Material LCP GF30 (Liquid Crystal Polymer) |

Download 2213738-5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2213738-5 - TE Connectivity - PCB symbol
click to zoom

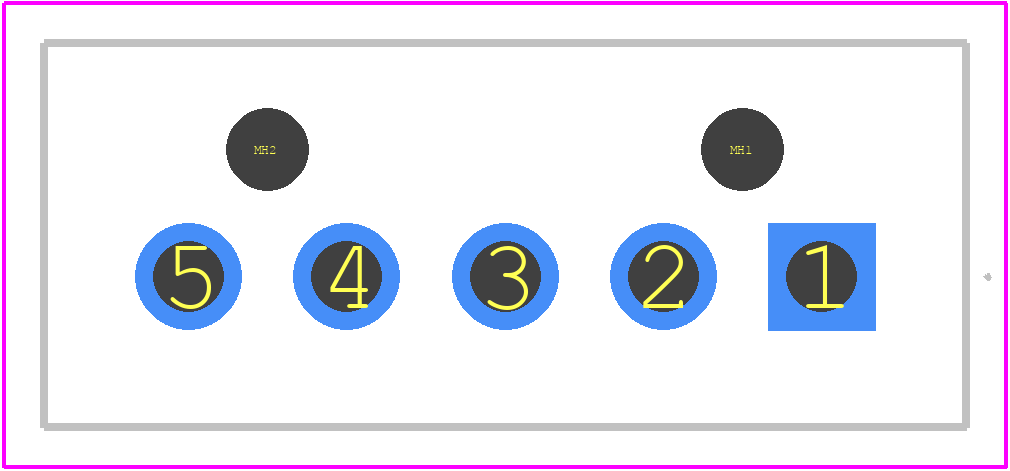

PCB Footprints
2213738-5 - TE Connectivity PCB footprint - Other - Other - 2213738-5-1
click to zoom
3D Models
2213738-5 - TE Connectivity - 3D model - Other - 2213738-5-1
click to zoom

2213738-5 Details

  • Manufacturer Part Number:

    2213738-5

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    0

  • Body/Shell Style:

    PLUG

  • Connector Type:

    CIRCULAR CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    GLASS FILLED LIQUID CRYSTAL POLYMER

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    12A

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Rated Current (Signal):

    12 A

  • Reference Standard:

    UL

  • Terminal Pitch:

    3.96 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    5

  • UL Flammability Code:

    94V-0

2213738-5 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs) to ensure secure connections.
  • Yes, the 2213738-5 connector is designed to withstand vibrations up to 10g (IEC 60068-2-6) and is suitable for use in high-vibration environments.
  • While the datasheet specifies AWG 20-24, the connector can accommodate wire sizes from AWG 18 to AWG 26 with the use of appropriate wire strippers and crimping tools.
  • The 2213738-5 connector is rated for operation in temperatures ranging from -40°C to 125°C (-40°F to 257°F), making it suitable for use in a wide range of applications.
  • Yes, the connector is designed to meet the requirements of IEC 60529 (IP67) and is resistant to ingress of water, dust, and other contaminants. However, it's essential to follow proper installation and sealing procedures to ensure the connector's integrity.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

2213738-5 Overview

Use the download button to access the 2213738-5 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 22137, or try a keyword search, such as Power Connectors
