- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for 2213S-16G
- Part Number 2213S-16G
- Manufacturer Multicomp Pro
- Pin Count 16
- Part Category Connector
- Package Category Header, Vertical

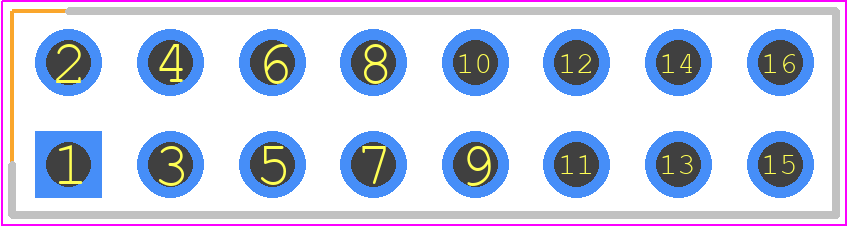

- Footprint Name Header, Vertical - 2213S-16G
- Released Date Feb 11, 2016
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
2213S-16G Details
-
Manufacturer Part Number:
2213S-16G
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.40
-
Manufacturer:
SPC Multicomp
-
YTEOL:
9.1
-
Connector Type:
BOARD CONNECTOR
-
Contact Gender:
MALE
-
DIN Conformance:
NO
-
Filter Feature:
NO
-
IEC Conformance:
NO
2213S-16G Frequently Asked Questions (FAQs)
-
The recommended storage temperature for the 2213S-16G is -40°C to 125°C.
-
Yes, the 2213S-16G is RoHS (Restriction of Hazardous Substances) compliant, meaning it meets the EU's standards for reducing hazardous substances in electronic components.
-
The operating frequency range of the 2213S-16G is DC to 16 GHz.
-
The typical insertion loss of the 2213S-16G is less than 1.5 dB up to 12 GHz and less than 2.5 dB up to 16 GHz.
-
Yes, the 2213S-16G is designed for high-reliability applications, including aerospace, defense, and industrial uses.
Trust Checks
Expert Contribution
System Verified
Community Approved
2213S-16G Overview
Use the download button to access the 2213S-16G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 2213S,
or try a keyword search, such as Headers and Edge Type Connectors
