2213S-20G footprint, schematic symbol and 3D model by Multicomp Pro

Symbol

click to zoom

PCB Footprints

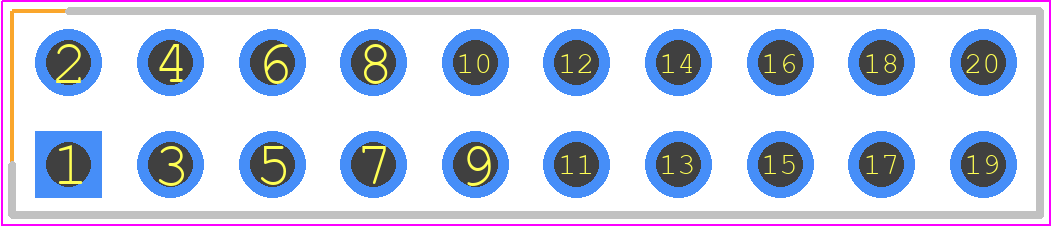

2213S-20G - Multicomp Pro PCB footprint - Header, Vertical - Header, Vertical - 2213S-20G_11

click to zoom

3D Models

2213S-20G - Multicomp Pro - 3D model - Header, Vertical - 2213S-20G_11

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 2213S-20G
Part Number 2213S-20G
Manufacturer Multicomp Pro
Pin Count 20
Part Category Connector
Package Category Header, Vertical
Footprint Name Header, Vertical - 2213S-20G_11
Released Date Feb 2, 2017
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

2213S-20G Details

Manufacturer Part Number:
2213S-20G
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Manufacturer:
SPC Multicomp
YTEOL:
9.1
Connector Type:
BOARD CONNECTOR
Contact Gender:
MALE
DIN Conformance:
NO
Filter Feature:
NO
IEC Conformance:
NO
MIL Conformance:
NO
Mixed Contacts:
NO
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number of Rows Loaded:
2
Option:
GENERAL PURPOSE
Terminal Pitch:
2.54 mm
Termination Type:
SOLDER
Total Number of Contacts:
20

2213S-20G Frequently Asked Questions (FAQs)

The recommended storage condition for the 2213S-20G is in a dry, cool place, away from direct sunlight and moisture, with a temperature range of -20°C to 40°C (-4°F to 104°F) and humidity below 80%.
Yes, the 2213S-20G is designed to withstand high-vibration environments, with a vibration resistance of 10-2000 Hz, 10G acceleration.
Yes, the 2213S-20G is compatible with lead-free soldering processes, with a peak reflow temperature of 260°C (500°F) for a maximum of 20 seconds.
The maximum operating temperature range for the 2213S-20G is -40°C to 125°C (-40°F to 257°F).
Yes, the 2213S-20G is designed to operate in humid environments, with a humidity range of 5-95% RH, but it's recommended to take precautions to prevent moisture ingress.

Trust Checks

Expert Contribution

System Verified

Community Approved

2213S-20G Overview

Use the download button to access the 2213S-20G schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like 2213S, or try a keyword search, such as Headers and Edge Type Connectors
