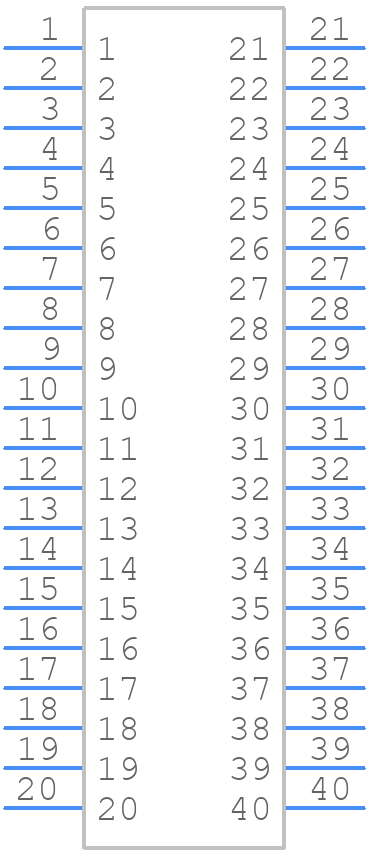

2213S-40G footprint, schematic symbol and 3D model by Multicomp Pro

Symbol

click to zoom

PCB Footprints

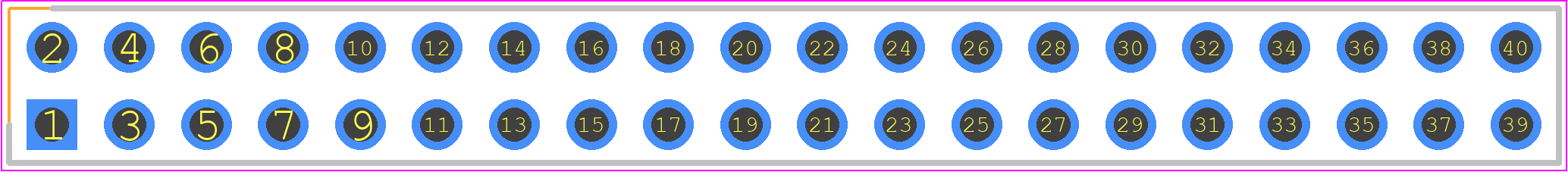

2213S-40G - Multicomp Pro PCB footprint - Header, Vertical - Header, Vertical - 2213S-40G-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 2213S-40G
Part Number 2213S-40G
Manufacturer Multicomp Pro
Pin Count 40
Part Category Capacitor
Package Category Header, Vertical
Footprint Name Header, Vertical - 2213S-40G-1
Released Date Mar 21, 2019
Last Modified Date Jun 22, 2023 2:40 AM UTC
Pinout / Pin List Click Here (Member Only)

2213S-40G Details

Manufacturer Part Number:
2213S-40G
Rohs Code:
Yes
Part Life Cycle Code:
Active
Reach Compliance Code:
Unknown
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Manufacturer:
SPC Multicomp
YTEOL:
9.1
Connector Type:
BOARD CONNECTOR
Contact Finish Mating:
GOLD
Contact Finish Termination:
Gold (Au)
Contact Gender:
MALE
Contact Material:
COPPER ALLOY
DIN Conformance:
NO
Filter Feature:
NO
IEC Conformance:
NO
JESD-609 Code:
e4
MIL Conformance:
NO
Mixed Contacts:
NO
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number of Rows Loaded:
2
Option:
GENERAL PURPOSE
Terminal Pitch:
2.54 mm
Termination Type:
SOLDER
Total Number of Contacts:
40
UL Flammability Code:
94V-0
