2214574-3 - TE Connectivity

Description: Configuration Features: Number of Rear EONs per Port Column 0 | Number of Ports 4 | Number of Positions 152 | Port Matrix Configuration 2 x 2 | Contact Features: PCB Contact Termination Area Plating Material Gold | Contact Mating Area Plating Material Thickness 30 MICIN | Contact Underplating Material Tin | Contact Mating Area Plating Material Thickness .76 MICM | Contact Mating Area Plating Material Gold | Dimensions: PCB Thickness (Recommended) 1.57 MM | PCB Thickness (Recommended) .062 INCH | Electrical

Download 2214574-3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2214574-3 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

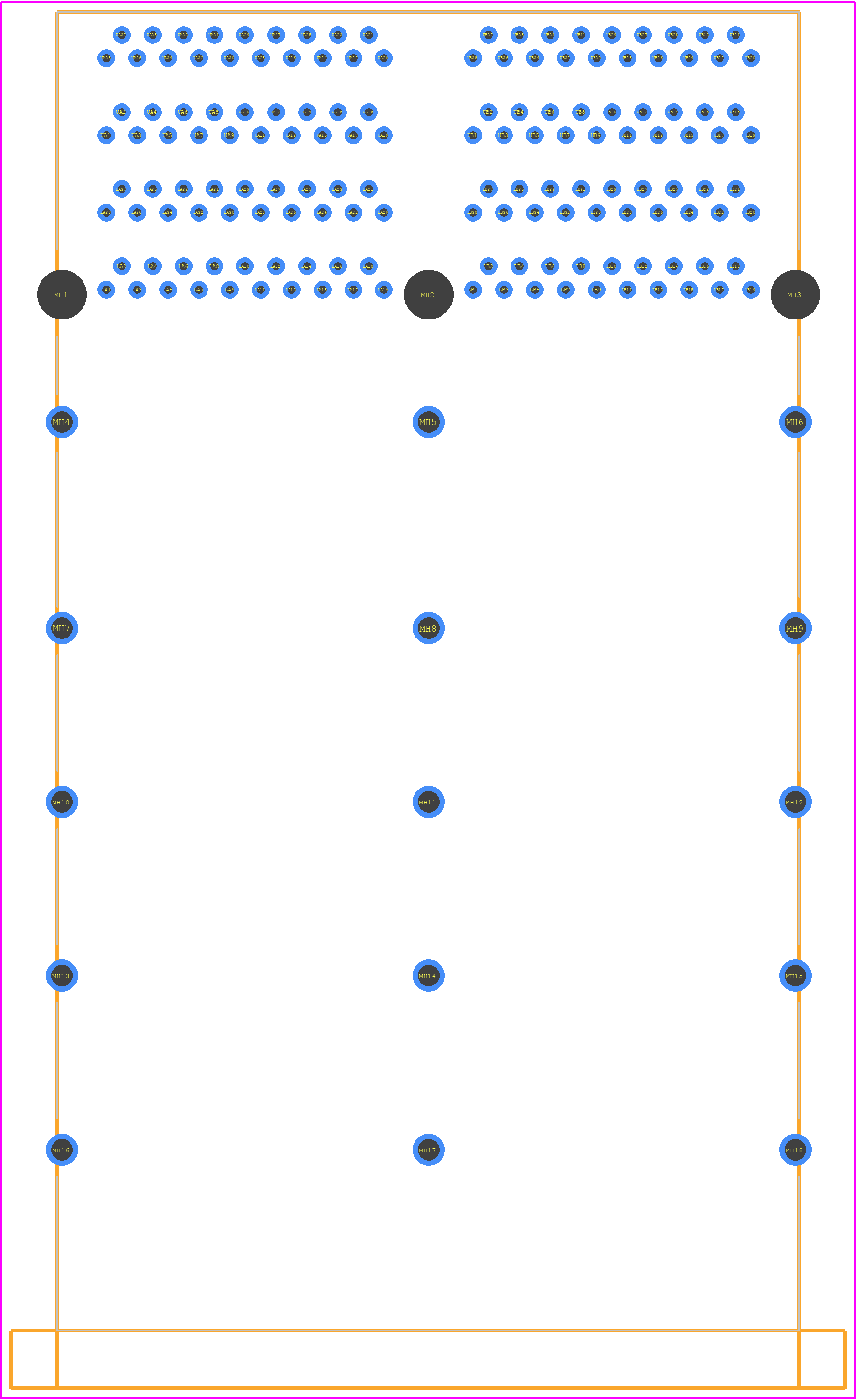

2214574-3 - TE Connectivity PCB footprint - Other - Other - 2214574-3-3
click to zoom
3D Models
2214574-3 - TE Connectivity - 3D model - Other - 2214574-3-3
click to zoom

2214574-3 Details

  • Manufacturer Part Number:

    2214574-3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    6 Weeks, 2 Days

  • Manufacturer:

    TE Connectivity

  • Connector Type:

    TELECOM AND DATACOM CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    115/230VAC

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    4

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Plating Thickness:

    30u inch

  • Reference Standard:

    UL

  • Terminal Length:

    0.079 inch

  • Terminal Pitch:

    0.8 mm

  • Termination Type:

    PRESS FIT

  • Total Number of Contacts:

    152

  • UL Flammability Code:

    94V-0

2214574-3 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 2214574-3 connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels. However, it's essential to ensure proper mounting and secure the connector to prevent damage or disconnection.
  • The 2214574-3 connector has a rating of IP20, which means it provides some protection against solid objects and limited protection against water. While it can be used in outdoor or harsh environments, it's essential to take additional measures to ensure the connector is properly sealed and protected from the elements.
  • While the datasheet recommends using AWG 20-24 wire, it's possible to use other wire sizes with the 2214574-3 connector. However, it's essential to ensure the wire size is compatible with the connector's terminal design and that the wire is properly secured to prevent damage or disconnection.
  • Yes, when using the 2214574-3 connector, it's essential to follow proper safety precautions to avoid electrical shock, fire, or other hazards. Ensure the connector is used within its rated voltage and current specifications, and follow proper wiring and installation procedures.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

2214574-3 Overview

Use the download button to access the 2214574-3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 22145, or try a keyword search, such as Telecom and Datacom Connectors
