2214593-2 - TE Connectivity

Description: Configuration Features: Port Matrix Configuration 2 x 2 | Number of Rear EONs per Port Column 3 | Number of Positions 152 | Number of Ports 4 | Contact Features: PCB Contact Termination Area Plating Material Gold | Contact Current Rating (Max) .5 AMP | Contact Mating Area Plating Material Thickness .76 MICM | Contact Underplating Material Tin | Contact Mating Area Plating Material Gold | Contact Mating Area Plating Material Thickness 30 MICIN | Dimensions: PCB Thickness (Recommended) 1.57 MM | PCB Thickness

Download 2214593-2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2214593-2 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

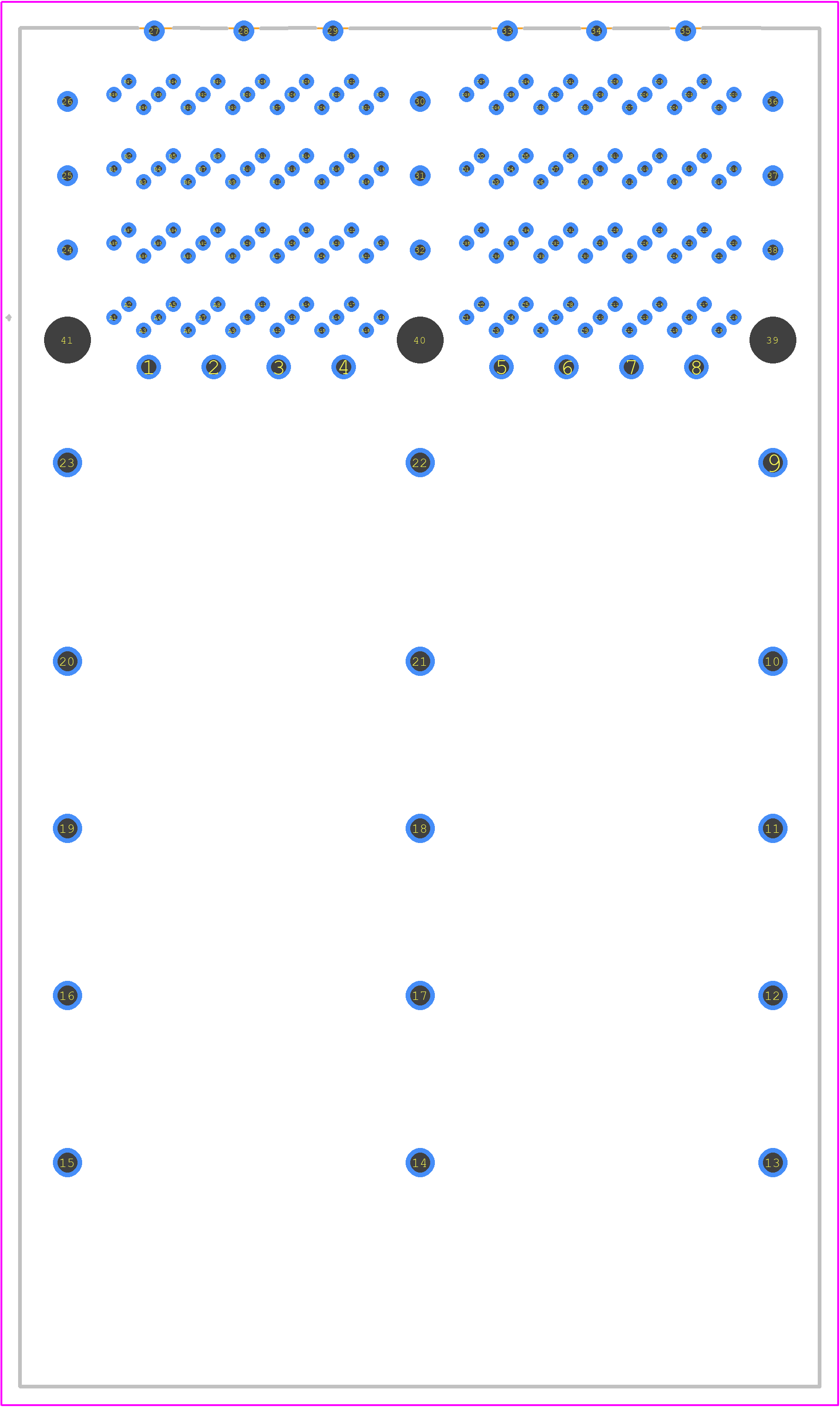

2214593-2 - TE Connectivity PCB footprint - Other - Other - 2214593-2-1
click to zoom
3D Models
2214593-2 - TE Connectivity - 3D model - Other - 2214593-2-1
click to zoom

2214593-2 Details

  • Manufacturer Part Number:

    2214593-2

  • Brand Name:

    TE Connectivity

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    TE Connectivity

  • Connector Type:

    TELECOM AND DATACOM CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    .5A

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    4

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Plating Thickness:

    30u inch

  • Rated Current (Signal):

    0.5 A

  • Reference Standard:

    UL

  • Terminal Length:

    0.079 inch

  • Terminal Pitch:

    0.8 mm

  • Termination Type:

    PRESS FIT

  • Total Number of Contacts:

    152

  • UL Flammability Code:

    94V-0

2214593-2 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 2214593-2 connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 vibration standard, making it suitable for use in applications such as industrial control systems, transportation, and more.
  • The 2214593-2 connector has a rating of IP67, which means it is protected against dust and can withstand immersion in water up to 1 meter for 30 minutes. However, it's essential to ensure proper sealing and protection when using the connector in outdoor environments.
  • The 2214593-2 connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F). It's essential to ensure that the connector is used within this temperature range to maintain its performance and reliability.
  • While the 2214593-2 connector is designed for use with 24 AWG wire, it can accommodate wire sizes ranging from 20 AWG to 26 AWG. However, it's essential to ensure that the wire size and insulation meet the connector's specifications to maintain reliable connections.
