2214913-1 - TE Connectivity

Description: Board-to-Board Card Edge Power Connector, 74 Position, 7.26 mm [.286 in] Centerline, Power & Signal, 26 Power Positions, MULTI-BEAM CE

Download 2214913-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2214913-1 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

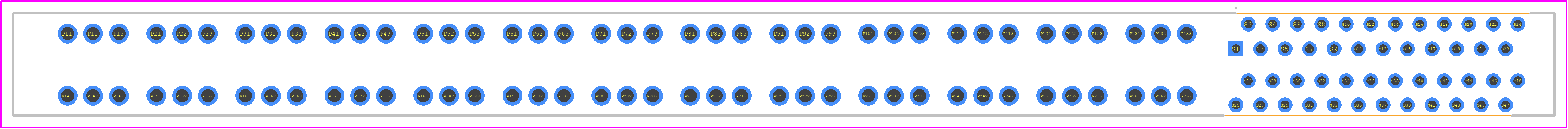

2214913-1 - TE Connectivity PCB footprint - Other - Other - 2214913-1-2
click to zoom
3D Models
2214913-1 - TE Connectivity - 3D model - Other - 2214913-1-2
click to zoom

2214913-1 Details

  • Manufacturer Part Number:

    2214913-1

  • Brand Name:

    AMP

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Unknown

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    6.7

  • Additional Feature:

    TERMINAL PITCH FOR POWER CONTACTS IS 7.3 MM

  • Connector Type:

    BOARD CONNECTOR

  • Contact Arrangement:

    S48P26

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    21A

  • Mixed Contacts:

    YES

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Plating Thickness:

    30u inch

  • Rated Current (Signal):

    21 A

  • Rated Voltage:

    100 V

  • Terminal Pitch:

    7.26 mm

  • Termination Type:

    PRESS FIT

  • Total Number of Contacts:

    74

2214913-1 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this value to ensure proper connection and prevent damage to the connector.
  • Yes, the 2214913-1 connector is designed to withstand high-vibration environments. It meets the IEC 61373 standard for vibration resistance, making it suitable for use in applications such as transportation, industrial, and aerospace.
  • While the datasheet specifies AWG 20-24 wire sizes, the connector can accommodate a range of wire sizes. However, it's essential to consult with TE Connectivity or a qualified engineer to determine the suitability of the connector for your specific wire size requirements.
  • The 2214913-1 connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F). This makes it suitable for use in a wide range of applications, from industrial to automotive and aerospace.
  • The 2214913-1 connector has a sealed design that provides protection against moisture and humidity. However, it's essential to consult with TE Connectivity or a qualified engineer to determine the suitability of the connector for use in environments with exposure to specific chemicals or extreme humidity levels.
