2214913-5 - TE Connectivity

Description: Power to the Board MULTI-BEAM CE 2X4 P + 2X4 S VERTICAL

Download 2214913-5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

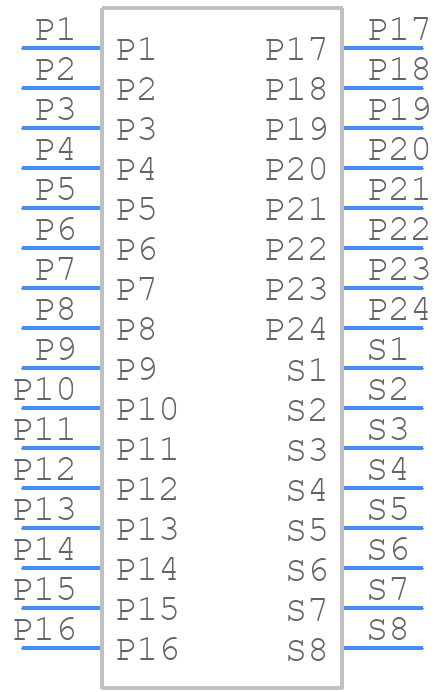

Symbol
2214913-5 - TE Connectivity - PCB symbol
click to zoom

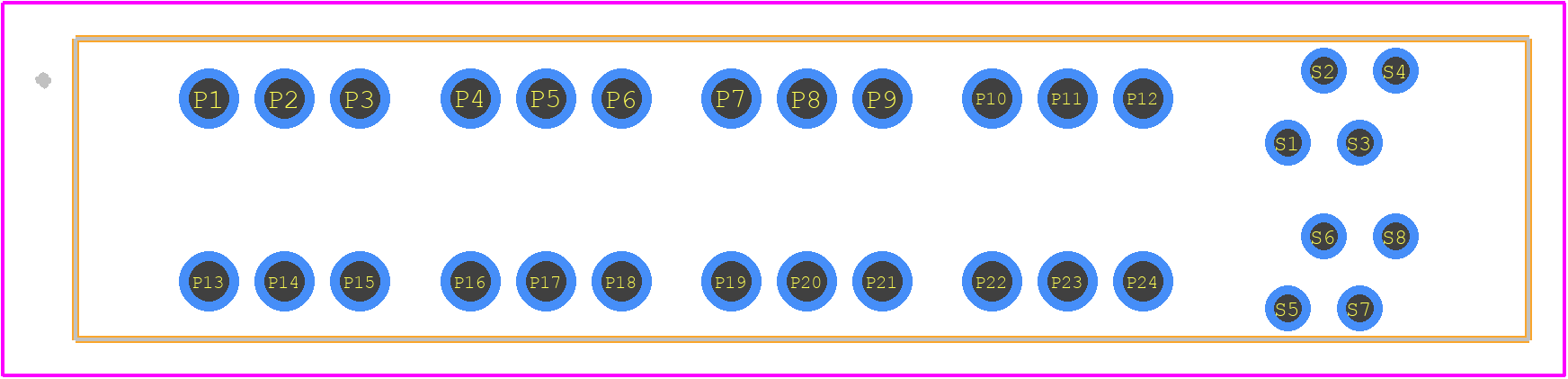

PCB Footprints
2214913-5 - TE Connectivity PCB footprint - Other - Other - 2214913-5-1
click to zoom
3D Models
2214913-5 - TE Connectivity - 3D model - Other - 2214913-5-1
click to zoom

2214913-5 Details

  • Manufacturer Part Number:

    2214913-5

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    0

  • Additional Feature:

    TERMINAL PITCH FOR POWER CONTACTS IS 7.3 MM

  • Connector Type:

    BOARD CONNECTOR

  • Contact Arrangement:

    S8P8

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    25A

  • Mixed Contacts:

    YES

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Plating Thickness:

    30u inch

  • Rated Current (Signal):

    25 A

  • Rated Voltage:

    100 V

  • Terminal Pitch:

    7.26 mm

  • Termination Type:

    PRESS FIT

  • Total Number of Contacts:

    16

2214913-5 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs) to ensure secure connections.
  • Yes, the 2214913-5 connector is designed to withstand vibrations up to 10g (IEC 60068-2-6) and is suitable for use in high-vibration environments.
  • While the datasheet specifies AWG 20-24, the connector can accommodate wire sizes from AWG 18 to AWG 26 with the use of appropriate wire strippers and crimping tools.
  • The 2214913-5 connector is rated for operation in temperatures ranging from -40°C to 125°C (-40°F to 257°F), making it suitable for use in a wide range of applications.
  • Yes, the connector is designed to meet the requirements of IEC 60529 (IP67) and is resistant to water, dust, and chemicals, making it suitable for use in harsh environments.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

2214913-5 Overview

Use the download button to access the 2214913-5 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 22149, or try a keyword search, such as Headers and Edge Type Connectors
