- Part Number 2214913-7
- Manufacturer TE Connectivity
- Pin Count 24
- Part Category Connector
- Package Category Other
- Footprint Name Other - 2214913-7-2
- Released Date Apr 13, 2022
- Last Modified Date Dec 15, 2024 10:37 PM UTC
- Pinout / Pin List Click Here (Member Only)
2214913-7 Details
-
Manufacturer Part Number:
2214913-7
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.40
-
Manufacturer:
TE Connectivity
-
YTEOL:
0
-
Additional Feature:
TERMINAL PITCH FOR POWER CONTACTS IS 7.3 MM
-
Connector Type:
BOARD CONNECTOR
-
Contact Arrangement:
S12P4
-
Contact Finish Mating:
NOT APPLICABLE
2214913-7 Frequently Asked Questions (FAQs)
-
The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
-
Yes, the 2214913-7 connector is designed to withstand vibrations and is suitable for use in high-vibration applications. However, it's essential to ensure that the connector is properly secured and that the screw terminals are tightened to the recommended torque value to prevent loosening over time.
-
The 2214913-7 connector has a rating of IP20, which means it provides some protection against solid objects and fingers, but it's not fully sealed against moisture or water. If you need to use the connector in outdoor or harsh environments, you may need to add additional protection, such as a waterproof coating or enclosure.
-
While the datasheet specifies 24 AWG wire, the connector can accommodate a range of wire sizes. However, it's essential to ensure that the wire size you choose is compatible with the connector's terminal design and that the wire is properly seated and secured to prevent damage or electrical issues.
-
Yes, as with any electrical connector, it's essential to follow proper safety precautions when using the 2214913-7 connector. Ensure that the connector is used within its rated voltage and current specifications, and that it's properly installed and secured to prevent electrical shock or fire hazards.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
2214913-7 Overview

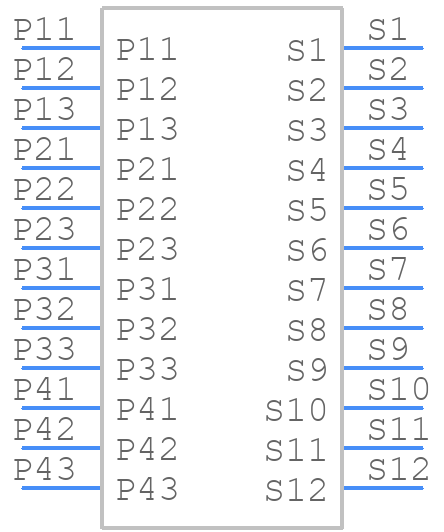

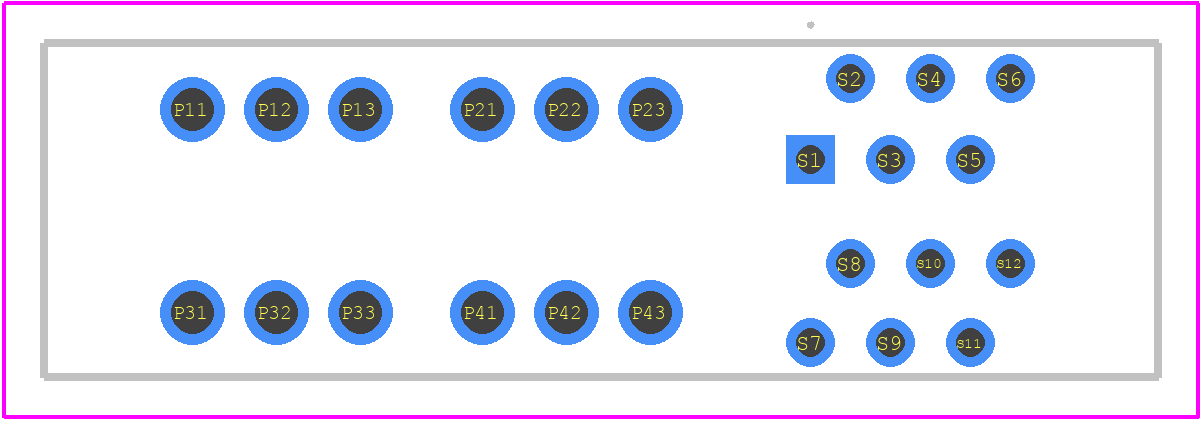

Use the download button to access the 2214913-7 schematic symbol, PCB footprint, and 3D model.
