2214BR-16G - Multicomp Pro

Description: MULTICOMP PRO 2214BR-16GPCB Receptacle, Board-to-Board, 2.54 mm, 2 Rows, 16 Contacts, Through Hole Mount Right Angle

Download 2214BR-16G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2214BR-16G - Multicomp Pro - PCB symbol
click to zoom
PCB Footprints

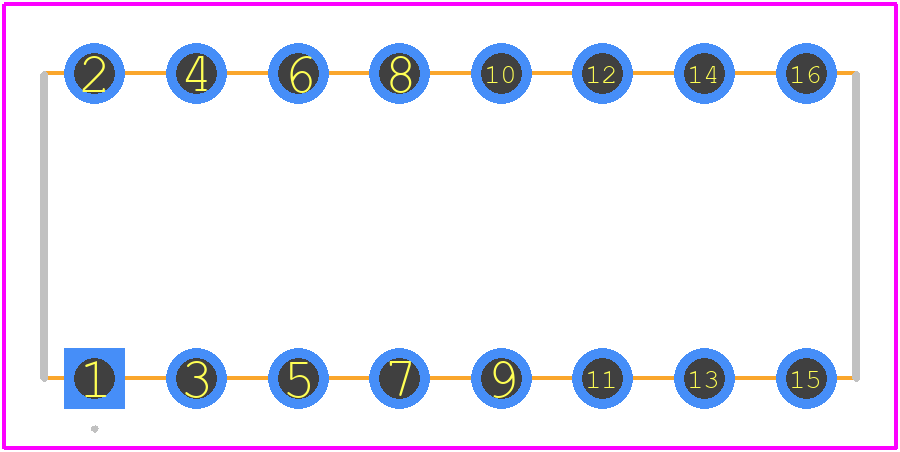

2214BR-16G - Multicomp Pro PCB footprint - Other - Other - 2214BR-16G-2
click to zoom
3D Models
2214BR-16G - Multicomp Pro - 3D model - Other - 2214BR-16G-2
click to zoom

2214BR-16G Details

  • Manufacturer Part Number:

    2214BR-16G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    SPC Multicomp

  • YTEOL:

    9.1

  • Body/Shell Style:

    SOCKET

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    GOLD

  • Contact Finish Termination:

    Gold (Au)

  • Contact Gender:

    FEMALE

  • Contact Material:

    PHOSPHOR BRONZE

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    16

  • UL Flammability Code:

    94V-0

2214BR-16G Frequently Asked Questions (FAQs)

  • The recommended storage temperature for 2214BR-16G is -40°C to 125°C.
  • Yes, the 2214BR-16G is RoHS (Restriction of Hazardous Substances) compliant, meaning it meets the EU's standards for reducing hazardous substances in electronic components.
  • The operating temperature range for 2214BR-16G is -40°C to 85°C.
  • Yes, the 2214BR-16G is designed to withstand high-vibration environments, making it suitable for use in applications such as industrial control systems, automotive systems, and more.
  • The MSL of the 2214BR-16G is MSL 3, which means it can withstand exposure to moisture for up to 168 hours without damage.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

2214BR-16G Overview

Use the download button to access the 2214BR-16G schematic symbol, PCB footprint, and 3D model.
