2214S-12SG-85 - Multicomp Pro

Description: SOCKET, PCB, 2 ROW, VERTICAL, 12 POSITION; Pitch Spacing:2.54mm; No. of Contacts:12Contacts; Gender:Receptacle; Product Range:2214S Series; Contact Termination Type:Through Hole; No. of Rows:2Rows; Contact Material:Copper Alloy RoHS Compliant: Yes

Download 2214S-12SG-85 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2214S-12SG-85 - Multicomp Pro - PCB symbol
click to zoom
PCB Footprints

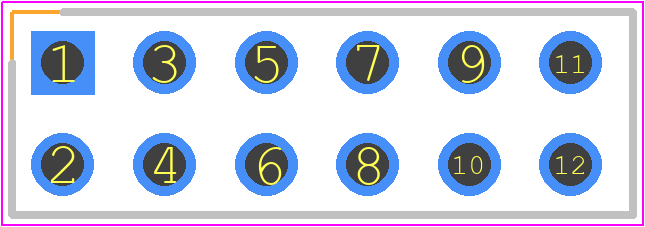

2214S-12SG-85 - Multicomp Pro PCB footprint - Header, Receptacle - Straight PTH Box - Header, Receptacle - Straight PTH Box - 2214S-12SG-85
click to zoom
3D Models
2214S-12SG-85 - Multicomp Pro - 3D model - Header, Receptacle - Straight PTH Box - 2214S-12SG-85
click to zoom

2214S-12SG-85 Details

  • Manufacturer Part Number:

    2214S-12SG-85

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    SPC Multicomp

  • YTEOL:

    9.1

  • Body/Shell Style:

    SOCKET

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Termination:

    Gold (Au)

  • Contact Gender:

    FEMALE

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    12

2214S-12SG-85 Frequently Asked Questions (FAQs)

  • The recommended storage temperature for 2214S-12SG-85 is -40°C to 100°C.
  • Yes, the 2214S-12SG-85 component is RoHS (Restriction of Hazardous Substances) compliant, meaning it meets the EU's standards for reducing hazardous substances in electronic components.
  • The operating temperature range for the 2214S-12SG-85 is -40°C to 85°C.
  • While the 2214S-12SG-85 is a robust component, it's recommended to consult with the manufacturer or a qualified engineer to determine its suitability for high-vibration applications, as it may require additional testing or modifications.
  • The 2214S-12SG-85 is not specifically designed for automotive applications, but it can be used in certain automotive systems with proper testing and validation. Consult with the manufacturer or a qualified engineer to determine its suitability for your specific application.
