2214S-16SG-85 - Multicomp Pro

Description: MULTICOMP - 2214S-16SG-85 - SOCKET, PCB, 2 ROW, VERT, 16WAY

Download 2214S-16SG-85 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2214S-16SG-85 - Multicomp Pro - PCB symbol
click to zoom
PCB Footprints

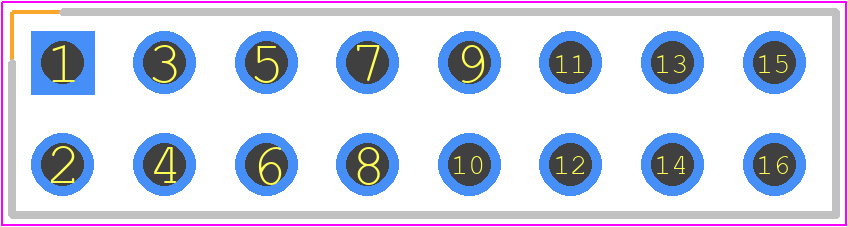

2214S-16SG-85 - Multicomp Pro PCB footprint - Header, Receptacle - Straight PTH Box - Header, Receptacle - Straight PTH Box - 2214S-16SG-85
click to zoom
3D Models
2214S-16SG-85 - Multicomp Pro - 3D model - Header, Receptacle - Straight PTH Box - 2214S-16SG-85
click to zoom

2214S-16SG-85 Details

  • Manufacturer Part Number:

    2214S-16SG-85

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    SPC Multicomp

  • YTEOL:

    9.1

  • Body/Shell Style:

    SOCKET

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    GOLD

  • Contact Finish Termination:

    GOLD

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    16

2214S-16SG-85 Frequently Asked Questions (FAQs)

  • The operating temperature range of the 2214S-16SG-85 connector is -40°C to 105°C.
  • Yes, the 2214S-16SG-85 connector is designed to withstand high-vibration environments, making it suitable for applications such as aerospace, automotive, and industrial equipment.
  • The 2214S-16SG-85 connector has a mating cycle life of 500 cycles minimum, ensuring reliable connections over an extended period.
  • Yes, the 2214S-16SG-85 connector is designed for automated assembly, with features such as pick-and-place compatibility and tape-and-reel packaging.
  • The 2214S-16SG-85 connector has an MSL rating of 1, indicating that it can withstand exposure to moisture without damage during the assembly process.
