2214S-40SG-85 footprint, schematic symbol and 3D model by Multicomp Pro

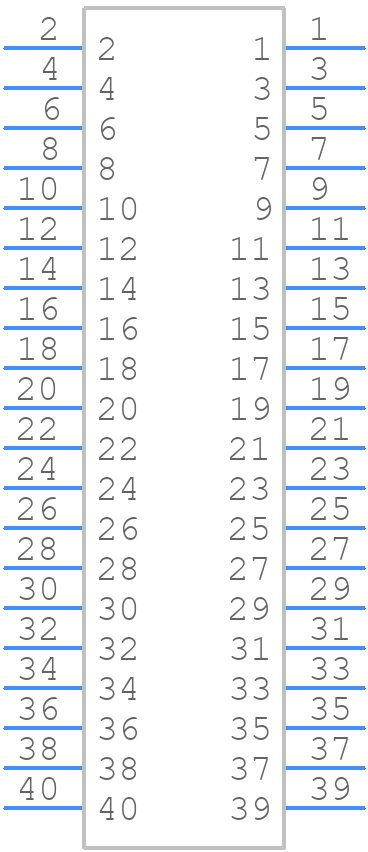

Symbol

click to zoom

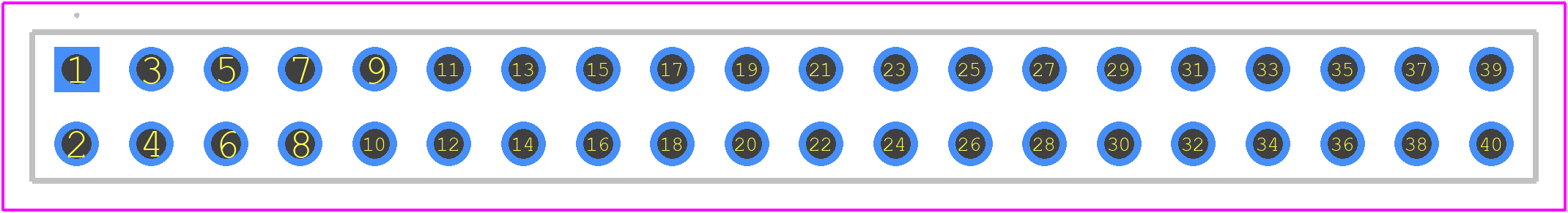

PCB Footprints

2214S-40SG-85 - Multicomp Pro PCB footprint - Other - Other - 2214S-40SG-85

click to zoom

3D Models

2214S-40SG-85 - Multicomp Pro - 3D model - Other - 2214S-40SG-85

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 2214S-40SG-85
Part Number 2214S-40SG-85
Manufacturer Multicomp Pro
Pin Count 40
Part Category Connector
Package Category Other
Footprint Name Other - 2214S-40SG-85
Released Date Jan 13, 2024
Last Modified Date Jan 13, 2024 6:25 AM UTC
Pinout / Pin List Click Here (Member Only)

2214S-40SG-85 Details

Manufacturer Part Number:
2214S-40SG-85
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Manufacturer:
SPC Multicomp
YTEOL:
9.1
Body Breadth:
0.2 inch
Body Depth:
0.331 inch
Body Length:
2.02 inch
Body/Shell Style:
SOCKET
Connector Type:
BOARD CONNECTOR
Contact Gender:
FEMALE
Contact Pattern:
RECTANGULAR
Contact Resistance:
20 mΩ
Contact Style:
SQ PIN-SKT
Dielectric Withstanding Voltage:
600VAC V
Filter Feature:
NO
Insulation Resistance:
1000000000 Ω
Insulator Color:
BLACK
Insulator Material:
POLYBUTYLENE TEREPHTHALATE
Mating Contact Pitch:
0.1 inch
Mating Contact Row Spacing:
0.1 inch
Mixed Contacts:
NO
Mounting Option 1:
LOCKING
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number Of PCB Rows:
2
Number of Rows Loaded:
2
Operating Temperature-Max:
105 °C
Operating Temperature-Min:
-40 °C
Option:
GENERAL PURPOSE
PCB Contact Pattern:
RECTANGULAR
PCB Contact Row Spacing:
2.54 mm
Rated Current (Signal):
3 A
Reference Standard:
UL
Terminal Length:
0.122 inch
Terminal Pitch:
2.54 mm
Termination Type:
SOLDER
Total Number of Contacts:
40
UL Flammability Code:
94V-0

2214S-40SG-85 Frequently Asked Questions (FAQs)

The recommended storage condition is in a dry, cool place, away from direct sunlight and moisture, with a temperature range of 20°C to 30°C (68°F to 86°F) and humidity below 60%.
Yes, the 2214S-40SG-85 is designed to withstand high-vibration environments, but it's recommended to follow the manufacturer's guidelines for mounting and installation to ensure optimal performance.
Yes, the 2214S-40SG-85 is compatible with lead-free soldering processes, but it's recommended to follow the manufacturer's guidelines for soldering temperature and time to ensure optimal performance.
The typical lead time for delivery of the 2214S-40SG-85 varies depending on the region and availability, but it's usually around 2-4 weeks. It's recommended to check with the supplier or distributor for the most up-to-date lead time information.
Yes, the 2214S-40SG-85 can be used in outdoor applications, but it's recommended to follow the manufacturer's guidelines for environmental protection and to ensure that the component is properly sealed and protected from moisture and other environmental factors.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

2214S-40SG-85 Overview

Use the download button to access the 2214S-40SG-85 schematic symbol, PCB footprint, and 3D model.
