The recommended torque for screwing the 221Y20F22H connector is 0.4 Nm to 0.6 Nm, as specified by NICOMATIC.
Yes, the 221Y20F22H connector is designed to withstand high-vibration environments, making it suitable for applications such as aerospace, defense, and industrial automation.
Yes, the 221Y20F22H connector is designed to operate in harsh environments, with a temperature range of -55°C to 150°C and humidity resistance up to 95% RH.
The 221Y20F22H connector has a mating cycle life of 500 cycles, as specified by NICOMATIC, making it suitable for applications that require frequent connections and disconnections.
Yes, the 221Y20F22H connector is RoHS and REACH compliant, meeting the European Union's regulations for restricted substances and chemical safety.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
221Y20F22H Overview

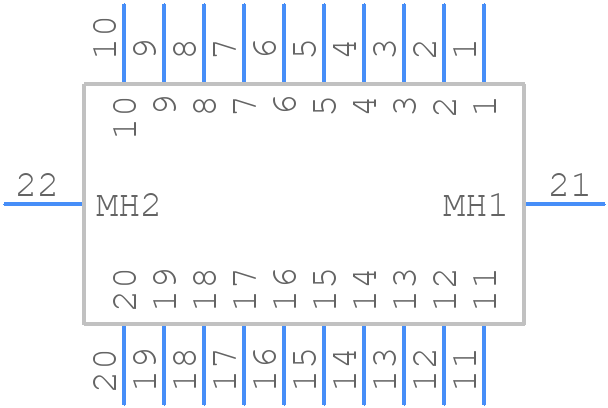

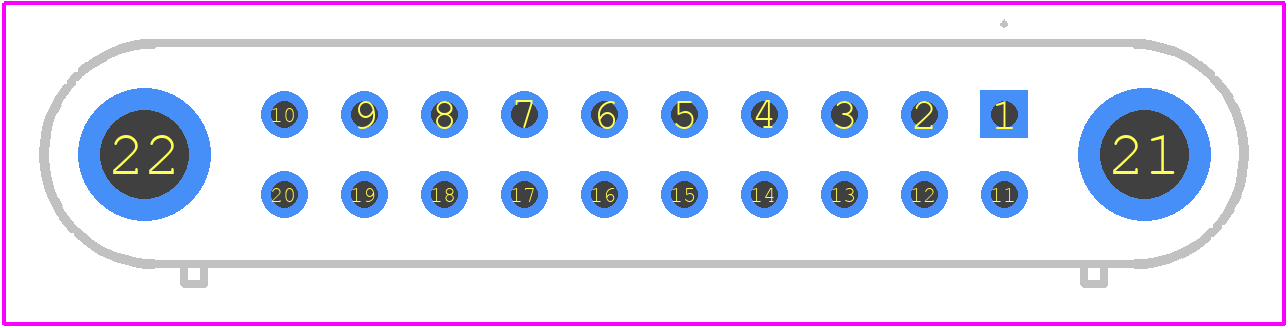

Use the download button to access the 221Y20F22H schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like 221Y2,
or try a keyword search, such as Headers and Edge Type Connectors
