221YL16F24 - Nicomatic

Description: CCM220 Series 2mm Pitch 16 Position STRAIGHT Connector F24 Hardware

Download 221YL16F24 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

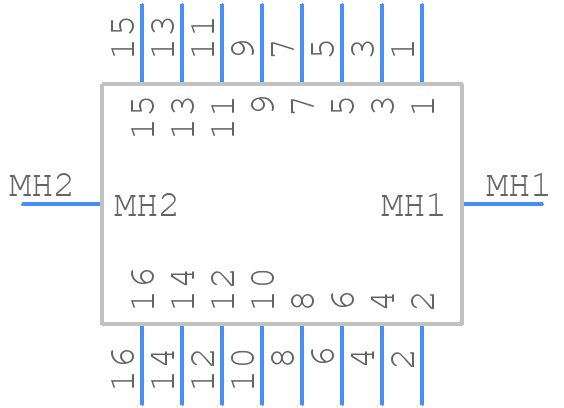

221YL16F24 - Nicomatic - PCB symbol
click to zoom
PCB Footprints

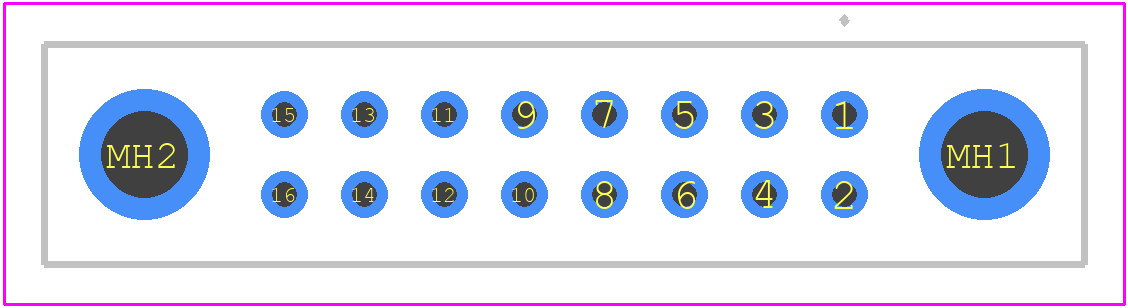

221YL16F24 - Nicomatic PCB footprint - Other - Other - 221YL16F24-1
click to zoom
3D Models
221YL16F24 - Nicomatic - 3D model - Other - 221YL16F24-1
click to zoom

221YL16F24 Details

  • Manufacturer Part Number:

    221YL16F24

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    France

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    NICOMATIC

  • YTEOL:

    8

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    GOLD OVER NICKEL

  • Contact Finish Termination:

    GOLD OVER NICKEL

  • Contact Gender:

    MALE

  • Contact Material:

    COPPER ALLOY

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    16

  • UL Flammability Code:

    94V-0

221YL16F24 Frequently Asked Questions (FAQs)

  • The recommended torque for screwing the 221YL16F24 connector is 0.4 Nm to 0.6 Nm (0.3 in-lbs to 0.5 in-lbs) to ensure proper mating and prevent damage.
  • Yes, the 221YL16F24 connector is designed to withstand vibrations up to 10g (10 Hz to 2000 Hz) and is suitable for use in high-vibration applications, such as in aerospace, defense, or industrial environments.
  • The 221YL16F24 connector is designed to operate in temperatures ranging from -55°C to 150°C (-133°F to 302°F) and can withstand humidity up to 95% RH. However, it's recommended to consult NICOMATIC's environmental testing reports for specific details.
  • The 221YL16F24 connector is rated for a minimum of 500 mating cycles, making it suitable for applications where frequent connections and disconnections are required.
  • The 221YL16F24 connector is designed to be compatible with other NICOMATIC products, such as their range of PCB connectors and cable assemblies. However, compatibility with third-party components should be verified through testing or consultation with NICOMATIC's technical support team.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

221YL16F24 Overview

Use the download button to access the 221YL16F24 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 221YL, or try a keyword search, such as Headers and Edge Type Connectors
