222131 - Amphenol

Description: RF Connectors / Coaxial Connectors F R/A BULKHEAD RECPT PCB DELRIN

Download 222131 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
222131 - Amphenol - PCB symbol
click to zoom
PCB Footprints

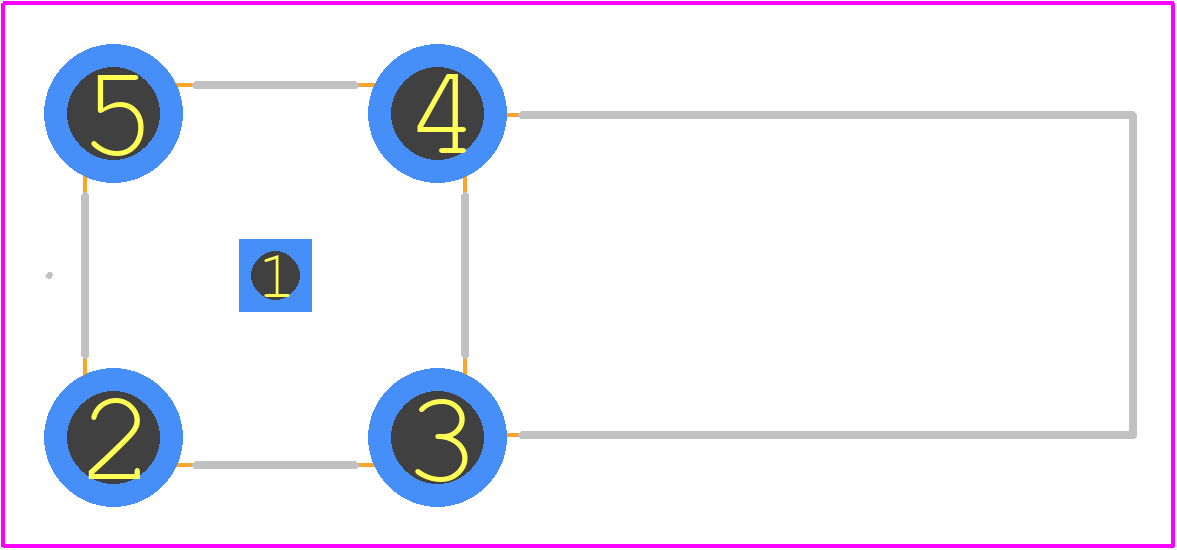

222131 - Amphenol PCB footprint - Other - Other - 222131-1
click to zoom
3D Models
222131 - Amphenol - 3D model - Other - 222131-1
click to zoom

222131 Details

  • Manufacturer Part Number:

    222131

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.10

  • Manufacturer:

    Amphenol Corporation

  • Additional Feature:

    VSWR MAX AT 1GHZ

  • Body Breadth:

    0.374 inch

  • Body Depth:

    1.032 inch

  • Body Length:

    0.591 inch

  • Body/Shell Style:

    RECEPTACLE

  • Characteristic Impedance:

    75 Ω

  • Connector Type:

    RF F CONNECTOR

  • Contact Finish Mating:

    MATTE TIN (200) OVER NICKEL (50)

  • Contact Finish Termination:

    MATTE TIN OVER NICKEL

  • Contact Gender:

    FEMALE

  • Coupling Type:

    SNAP

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    POLYPROPYLENE

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD AND PANEL

  • Operating Frequency-Max:

    2 GHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    YES

  • Shell Finish:

    NICKEL

  • Shell Material:

    BRASS

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    1

  • VSWR:

    1.5

222131 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-1.5 Nm (4-12 in-lbs). However, it's essential to consult the specific application requirements and follow the recommended torque values to ensure reliable connections.
  • Yes, the 222131 connector is designed to withstand high-vibration environments. Amphenol Corporation's connectors are tested to meet or exceed the requirements of various industry standards, including MIL-DTL-5015 and IEC 61373. However, it's crucial to consult the specific vibration requirements of your application and ensure the connector is properly secured and installed.
  • The operating temperature range of the 222131 connector is -55°C to 125°C (-65°F to 257°F). However, it's essential to note that the temperature range may vary depending on the specific application and environmental conditions.
  • Yes, the 222131 connector is designed to operate in harsh environments. The connector's materials and construction are resistant to corrosion, and it can withstand exposure to humidity and certain chemicals. However, it's crucial to consult the specific environmental requirements of your application and ensure the connector is properly sealed and protected.
  • The 222131 connector is primarily designed for power and signal applications, and its performance may vary depending on the specific high-speed data transmission requirements. While it can support some high-speed applications, it's essential to consult the specific requirements of your application and consider alternative connectors designed specifically for high-speed data transmission.
