2222SQ-301GEB footprint, schematic symbol and 3D model by COILCRAFT

Symbol

click to zoom

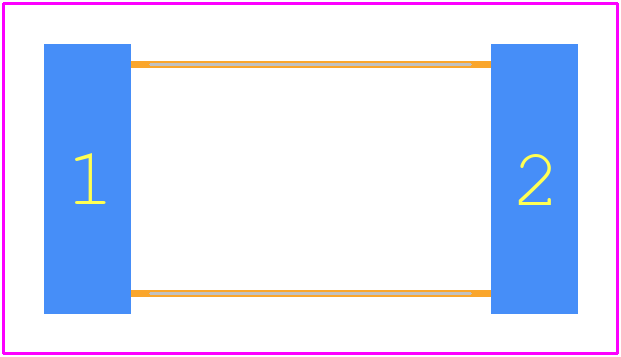

PCB Footprints

2222SQ-301GEB - COILCRAFT PCB footprint - Other - Other - 2222SQ-301GEB-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 2222SQ-301GEB
Part Number 2222SQ-301GEB
Manufacturer COILCRAFT
Pin Count 2
Part Category Inductor
Package Category Other
Footprint Name Other - 2222SQ-301GEB-2
Released Date Jul 10, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

2222SQ-301GEB Details

Manufacturer Part Number:
2222SQ-301GEB
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Package Description:
CHIP
Country Of Origin:
Mainland China
ECCN Code:
EAR99
HTS Code:
8504.50.80.00
Manufacturer:
Coilcraft Inc
YTEOL:
0
Case/Size Code:
4723
Construction:
Rectangular
Core Material:
AIR
DC Resistance:
0.0138 Ω
Inductance-Nom (L):
0.3 µH
Inductor Application:
RF INDUCTOR
Inductor Type:
GENERAL PURPOSE INDUCTOR
JESD-609 Code:
e2
Number of Functions:
1
Number of Terminals:
2
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Package Height:
5.69 mm
Package Length:
11.94 mm
Package Style:
SMT
Package Width:
5.72 mm
Packing Method:
TR
Rated Current-Max:
3.7 A
Self Resonance Frequency:
720 MHz
Shape/Size Description:
RECTANGULAR PACKAGE
Shielded:
NO
Surface Mount:
YES
Terminal Finish:
Tin/Silver (Sn96.5Ag3.5)
Terminal Placement:
DUAL ENDED
Terminal Shape:
WIRE
Test Frequency:
50 MHz
Tolerance:
2%

2222SQ-301GEB Frequently Asked Questions (FAQs)

Coilcraft provides a recommended land pattern for the 2222SQ-301GEB in their documentation, which includes a pad layout and dimensions for optimal soldering and thermal performance.
While the datasheet specifies an operating temperature range of -40°C to +125°C, Coilcraft recommends derating the inductor's current rating for extended operation above 105°C. Consult Coilcraft's application notes for more information.
The 2222SQ-301GEB is a commercial-grade inductor, but Coilcraft offers similar inductors with higher reliability ratings, such as the 2222SQ-301GEC, which meets AEC-Q200 standards for automotive applications. Consult Coilcraft's documentation for more information.
The 2222SQ-301GEB is not UL-certified, but Coilcraft offers similar inductors that meet UL and EN standards, such as the 2222SQ-301GUL. Consult Coilcraft's documentation for more information.
Coilcraft provides guidance on magnetic field management in their application notes, including recommendations for shielding, spacing, and orientation of adjacent components.

Trust Checks

Expert Contribution

System Verified

Community Approved

2222SQ-301GEB Overview

Use the download button to access the 2222SQ-301GEB schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 2222S, or try a keyword search, such as Fixed Inductors

About COILCRAFT

Colicraft designs and manufactures high performing magnectic components, RF chip inductors, power magnectics, and filters. Coilcraft has engineering, manufacturing, and distribution facilities in North America, Asia, and Europe.
