2224 - Keystone Electronics

Description: Cylindrical Battery Contacts, Clips, Holders & Springs C CELL ALUM HOLDER

Download 2224 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2224 - Keystone Electronics - PCB symbol
click to zoom
PCB Footprints

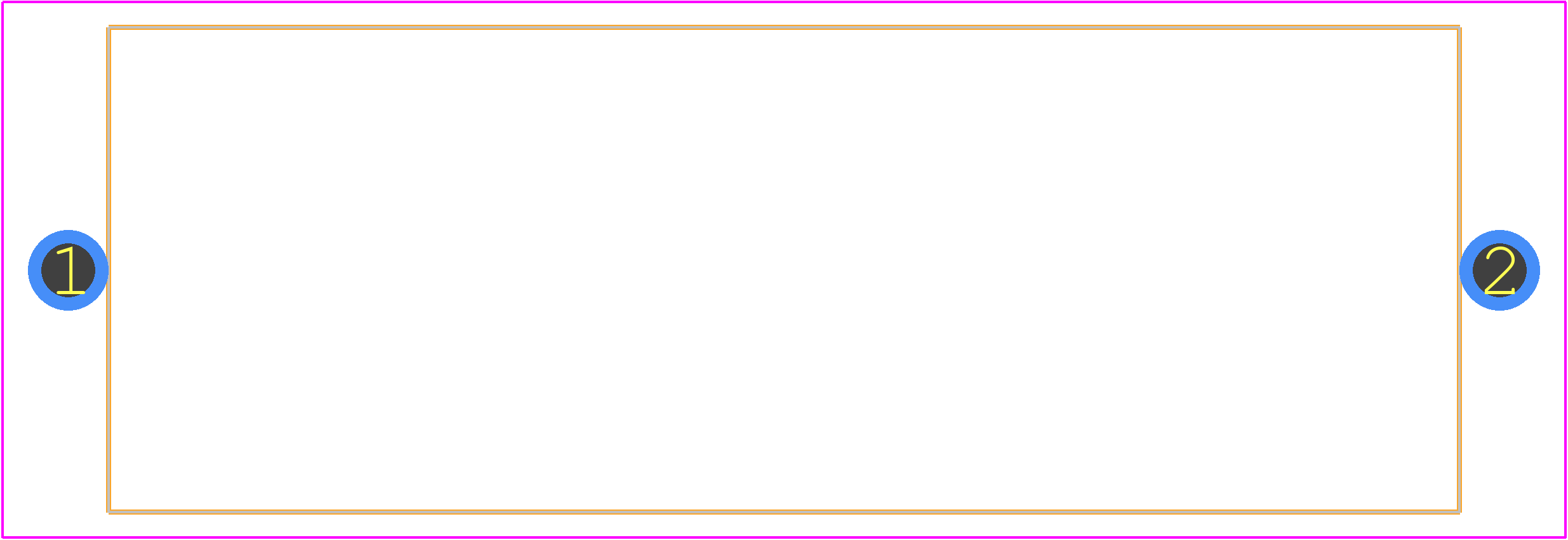

2224 - Keystone Electronics PCB footprint - Other - Other - 2224-1
click to zoom
3D Models
2224 - Keystone Electronics - 3D model - Other - 2224-1
click to zoom

2224 Details

  • Manufacturer Part Number:

    2224

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Keystone Electronics Corp

  • Connector Type:

    PCB CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    TIN

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Number Of Connectors:

    ONE

  • Option:

    GENERAL PURPOSE

2224 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.8 Nm (4-6 in-lbs).
  • Yes, the 2224 is designed to withstand vibrations up to 10G (10-2000 Hz) and can be used in high-vibration environments.
  • The operating temperature range for the 2224 is -40°C to 105°C (-40°F to 221°F).
  • Yes, the 2224 is designed to operate in humid environments with a relative humidity of up to 95%.
  • The recommended wire size for the screw terminals is 24-18 AWG (0.25-1.5 mm²).
