Part Image

2226 - Keystone Electronics

Description: Cylindrical Battery Contacts, Clips, Holders & Springs D CELL ALUM HOLDER

Download 2226 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2226 - Keystone Electronics - PCB symbol
click to zoom
PCB Footprints

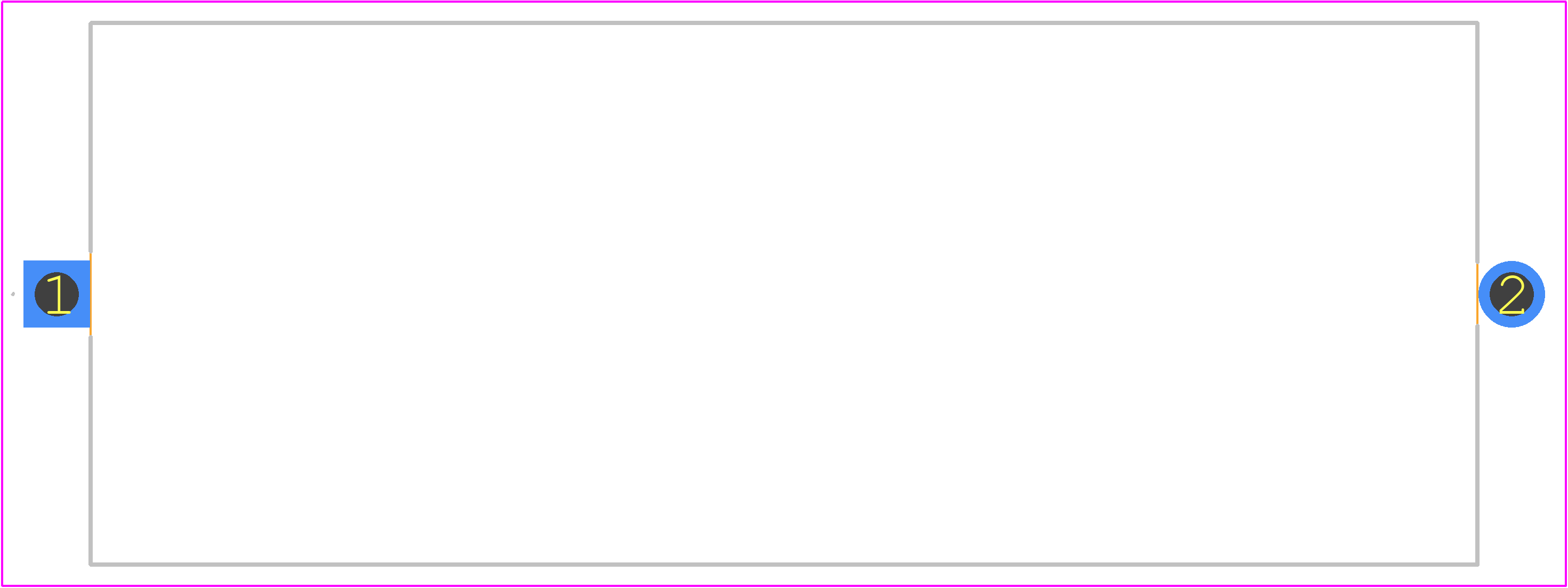

2226 - Keystone Electronics PCB footprint - Other - Other - 2226-3
click to zoom
3D Models
2226 - Keystone Electronics - 3D model - Other - 2226-3
click to zoom

2226 Details

  • Manufacturer Part Number:

    2226

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Keystone Electronics Corp

  • Connector Type:

    PCB CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    TIN

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Number Of Connectors:

    ONE

  • Option:

    GENERAL PURPOSE

2226 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.8 Nm (4-6 in-lbs).
  • Yes, the 2226 is designed to withstand high-vibration environments. However, it's recommended to secure the device properly to prevent damage or dislodging.
  • The operating temperature range for the 2226 is -40°C to 105°C (-40°F to 221°F).
  • Yes, the 2226 is designed to operate in humid environments. However, it's recommended to follow proper sealing and encapsulation procedures to prevent moisture ingress.
  • The maximum current rating for the 2226 is 10A per terminal. However, it's recommended to derate the current based on the ambient temperature and other environmental factors.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

2226 Overview

Use the download button to access the 2226 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search or try a keyword search, such as Headers and Edge Type Connectors
