2227303-2 - TE Connectivity

Description: Configuration Features: Number of Ports 1 | Port Matrix Configuration 1 x 1 | Contact Features: Tail Plating Material Tin | Dimensions: PCB Thickness (Recommended) 1.5 MM | PCB Thickness (Recommended) .059 INCH | Electrical Characteristics: Data Rate (Max) 4 GBS | Housing Features: Cage Material Stainless Steel | Operation/Application: Pluggable I/O Applications zSFP+ Thermally Enhanced | Heat Sink Compatible No | Other: Included Lightpipe No | EMI Containment Feature Type Internal/External EMI Springs | Pa

Download 2227303-2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

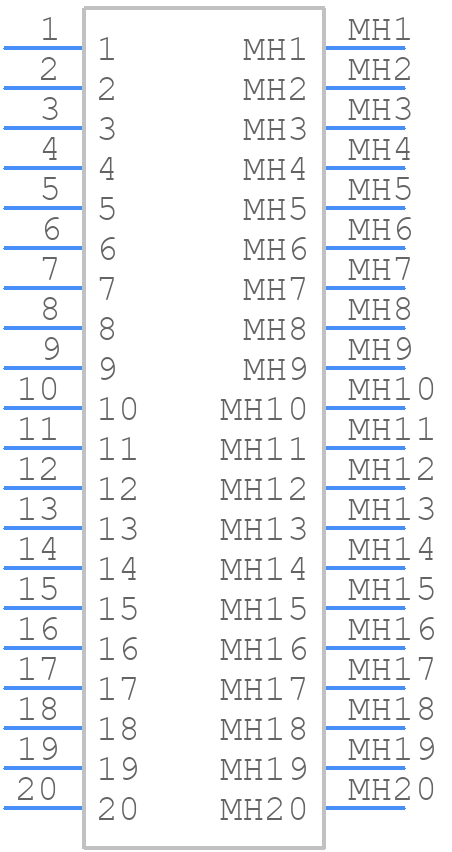

2227303-2 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

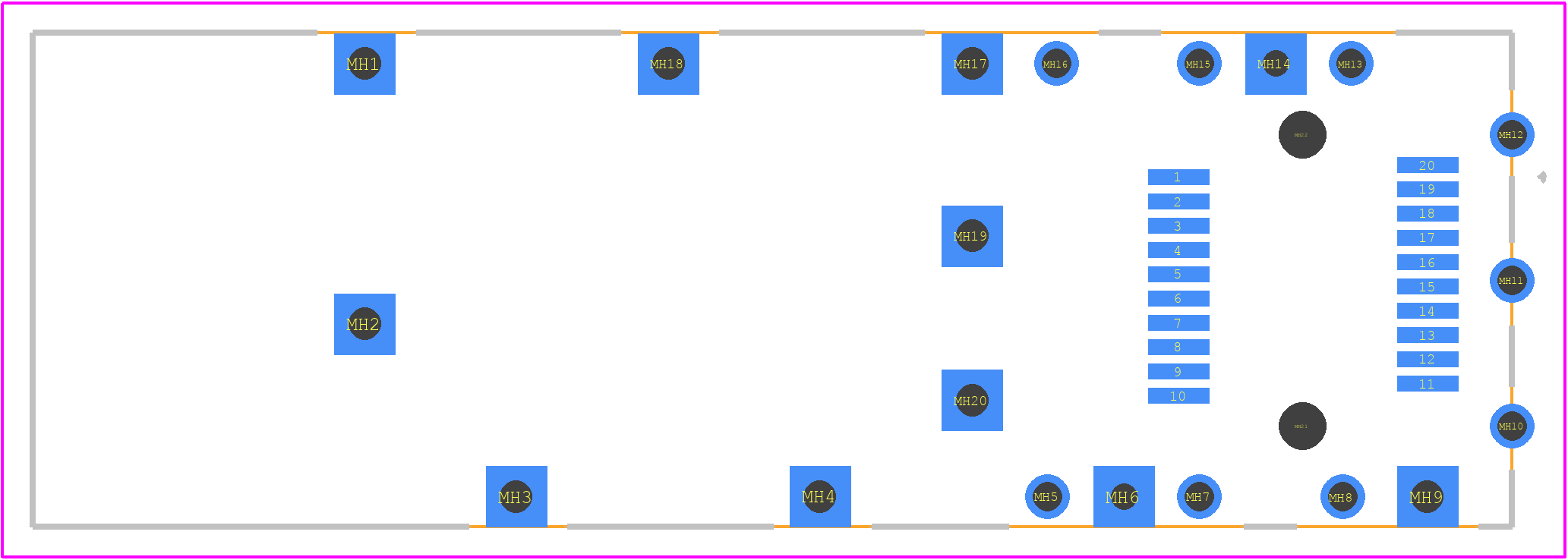

2227303-2 - TE Connectivity PCB footprint - Other - Other - 2227303-2-4
click to zoom
3D Models
2227303-2 - TE Connectivity - 3D model - Other - 2227303-2-4
click to zoom

2227303-2 Details

  • Manufacturer Part Number:

    2227303-2

  • Brand Name:

    TE Connectivity

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Factory Lead Time:

    4 Weeks, 3 Days

  • Manufacturer:

    TE Connectivity

  • Assembly Item Name:

    CAGE ASSEMBLY

  • Connector Support Type:

    CONNECTOR ACCESSORY

  • DIN Conformance:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Material:

    STAINLESS STEEL

  • Mounting Option 1:

    LOCKING

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -55 °C

  • Used With:

    SFP CONNECTOR

  • Wire Gauge:

    0 AWG
