2227303-3 - TE Connectivity

Description: Configuration Features: Number of Ports 1 | Port Matrix Configuration 1 x 1 | Contact Features: Tail Plating Material Tin | Dimensions: PCB Thickness (Recommended) 1.5 MM | PCB Thickness (Recommended) .059 INCH | Electrical Characteristics: Data Rate (Max) 4 GBS | Housing Features: Cage Material Stainless Steel | Operation/Application: Heat Sink Compatible No | Pluggable I/O Applications zSFP+ Thermally Enhanced | Other: EMI Containment Feature Type Internal/External EMI Springs | Included Lightpipe No | Pa

Download 2227303-3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

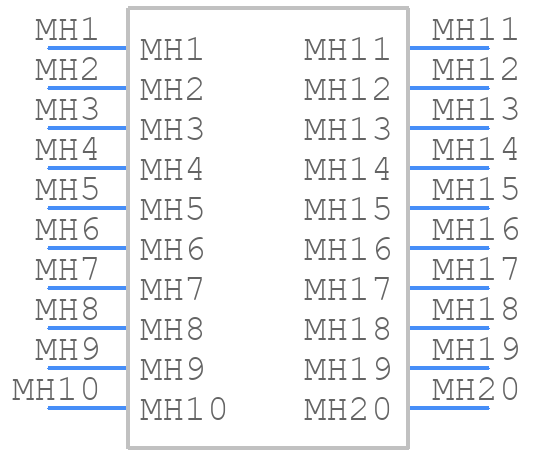

2227303-3 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

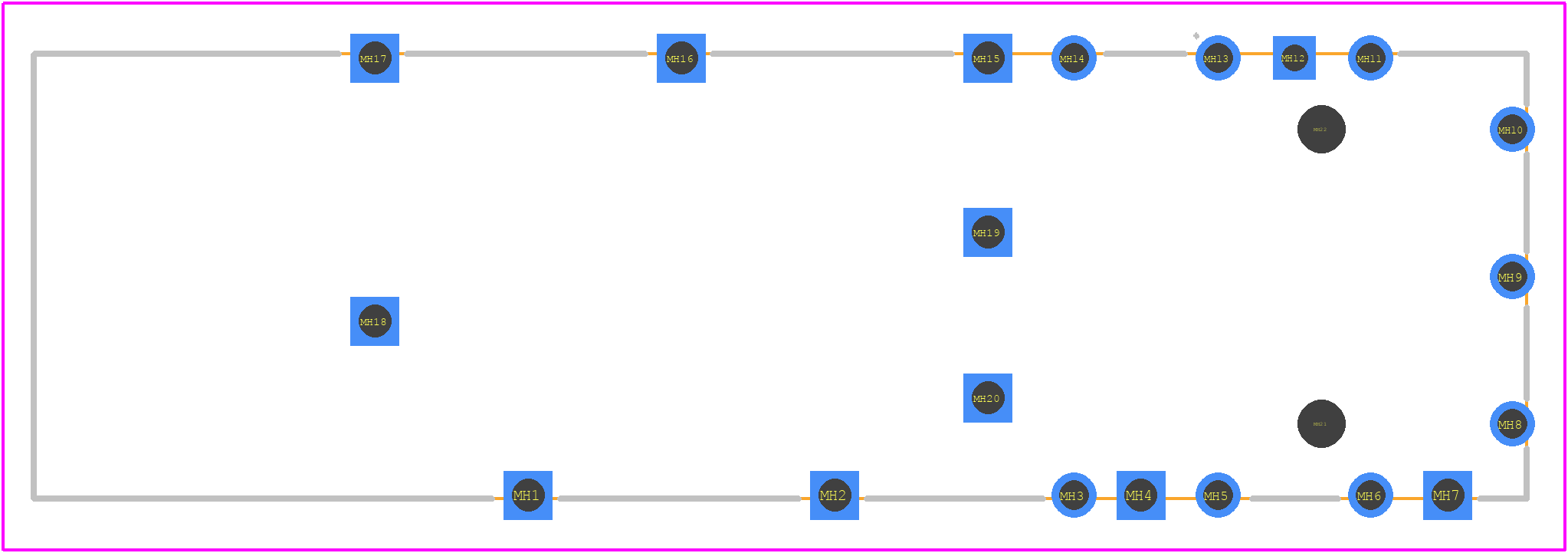

2227303-3 - TE Connectivity PCB footprint - Other - Other - 2227303-3
click to zoom
3D Models
2227303-3 - TE Connectivity - 3D model - Other - 2227303-3
click to zoom

2227303-3 Details

  • Manufacturer Part Number:

    2227303-3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    TE Connectivity

  • Assembly Item Name:

    CAGE ASSEMBLY

  • Connector Support Type:

    CONNECTOR ACCESSORY

  • DIN Conformance:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Material:

    STAINLESS STEEL

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -55 °C

  • Terminal Type:

    SOLDER

  • Used With:

    SFP CONNECTOR

  • Wire Gauge:

    0 AWG

2227303-3 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals.
  • Yes, the 2227303-3 connector is designed to withstand high-vibration environments, making it suitable for use in industrial, automotive, and aerospace applications.
  • Yes, the 2227303-3 connector is designed for automated assembly and can be easily integrated into high-volume manufacturing processes.
  • The operating temperature range for the 2227303-3 connector is -40°C to 125°C (-40°F to 257°F).
  • Yes, the 2227303-3 connector is designed to withstand harsh environments, including high humidity and exposure to chemicals, making it suitable for use in industrial, automotive, and aerospace applications.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

2227303-3 Overview

Use the download button to access the 2227303-3 schematic symbol, PCB footprint, and 3D model.
