2227667-2 - TE Connectivity

Description: Configuration Features: Number of Ports 4 | Port Matrix Configuration 2 x 2 | Number of Rear EONs per Port Column 0 | Number of Positions 152 | Contact Features: Contact Mating Area Plating Material Thickness .76 MICM | Contact Underplating Material Tin | Contact Mating Area Plating Material Thickness 30 MICIN | Contact Current Rating (Max) .5 AMP | Contact Mating Area Plating Material Gold | PCB Contact Termination Area Plating Material Gold | Dimensions: PCB Thickness (Recommended) .062 INCH | PCB Thickne

Download 2227667-2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2227667-2 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

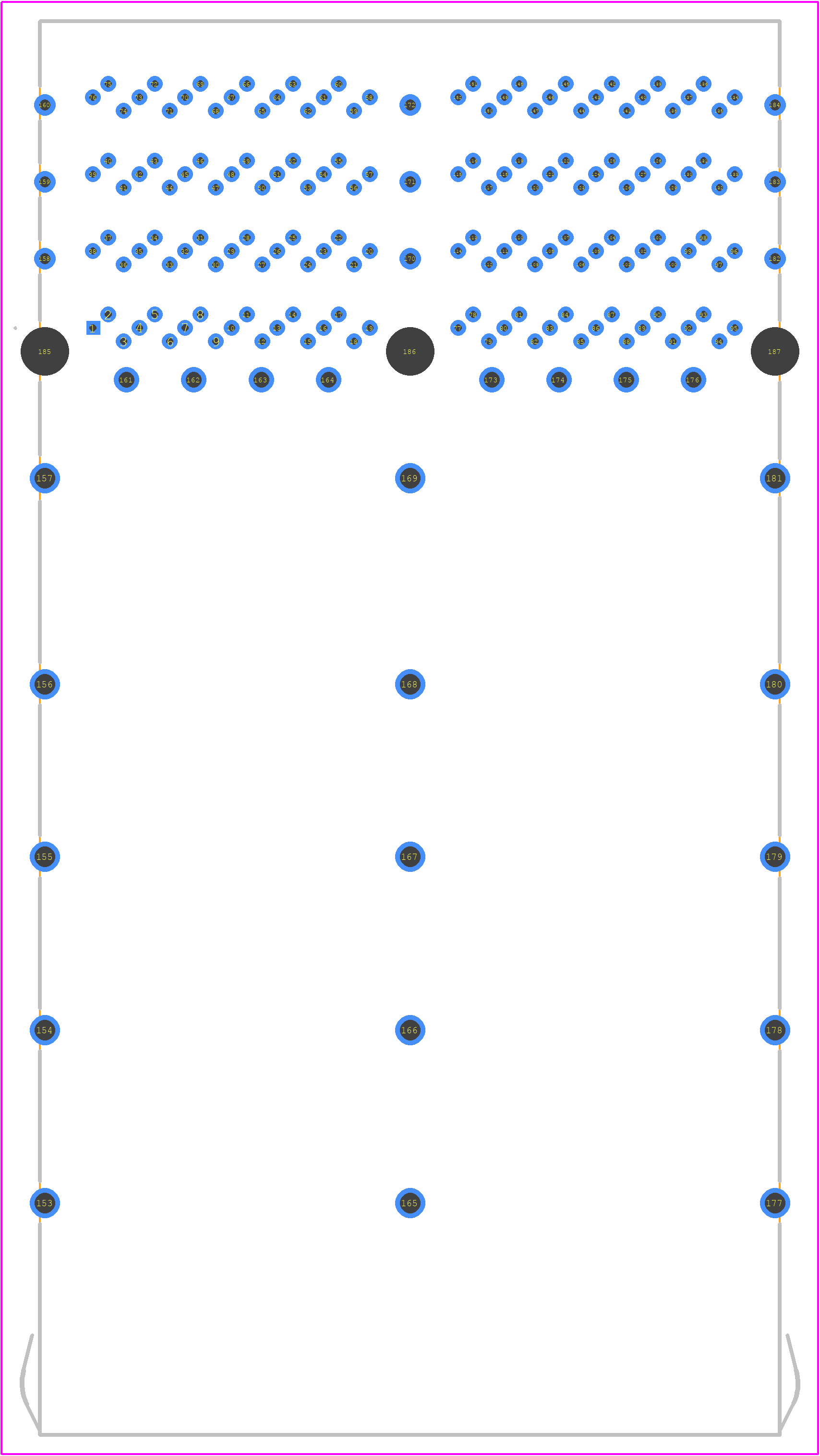

2227667-2 - TE Connectivity PCB footprint - Other - Other - 2227667-2-5
click to zoom
3D Models
2227667-2 - TE Connectivity - 3D model - Other - 2227667-2-5
click to zoom

2227667-2 Details

  • Manufacturer Part Number:

    2227667-2

  • Brand Name:

    TE Connectivity

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    TE Connectivity

  • Connector Type:

    TELECOM AND DATACOM CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    .5A

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    4

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Plating Thickness:

    30u inch

  • Rated Current (Signal):

    0.5 A

  • Reference Standard:

    UL

  • Terminal Length:

    0.079 inch

  • Terminal Pitch:

    0.8 mm

  • Termination Type:

    PRESS FIT

  • Total Number of Contacts:

    152

  • UL Flammability Code:

    94V-0

2227667-2 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this value to ensure proper connection and prevent damage to the connector.
  • Yes, the 2227667-2 connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 vibration standard, making it suitable for use in applications such as rail, industrial, and automotive.
  • The 2227667-2 connector has a IP67 rating, which means it is protected against dust and water ingress. However, it's essential to ensure proper sealing and protection when using the connector in outdoor environments to maintain its performance and reliability.
  • The 2227667-2 connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F). It's essential to ensure that the connector is used within this temperature range to maintain its performance and reliability.
  • The 2227667-2 connector is rated for up to 12A per contact. However, it's essential to consider the wire size, material, and insulation when designing high-current applications to ensure safe and reliable operation.
