2227669-2 - TE Connectivity

Description: Configuration Features: Number of Positions 76 | Port Matrix Configuration 2 x 1 | Number of Ports 2 | Number of Rear EONs per Port Column 3 | Contact Features: Contact Mating Area Plating Material Thickness 30 MICIN | Contact Mating Area Plating Material Gold | Contact Underplating Material Tin | Contact Mating Area Plating Material Thickness .76 MICM | Contact Current Rating (Max) .5 AMP | PCB Contact Termination Area Plating Material Gold | Dimensions: PCB Thickness (Recommended) 1.57 MM | PCB Thickness

Download 2227669-2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2227669-2 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

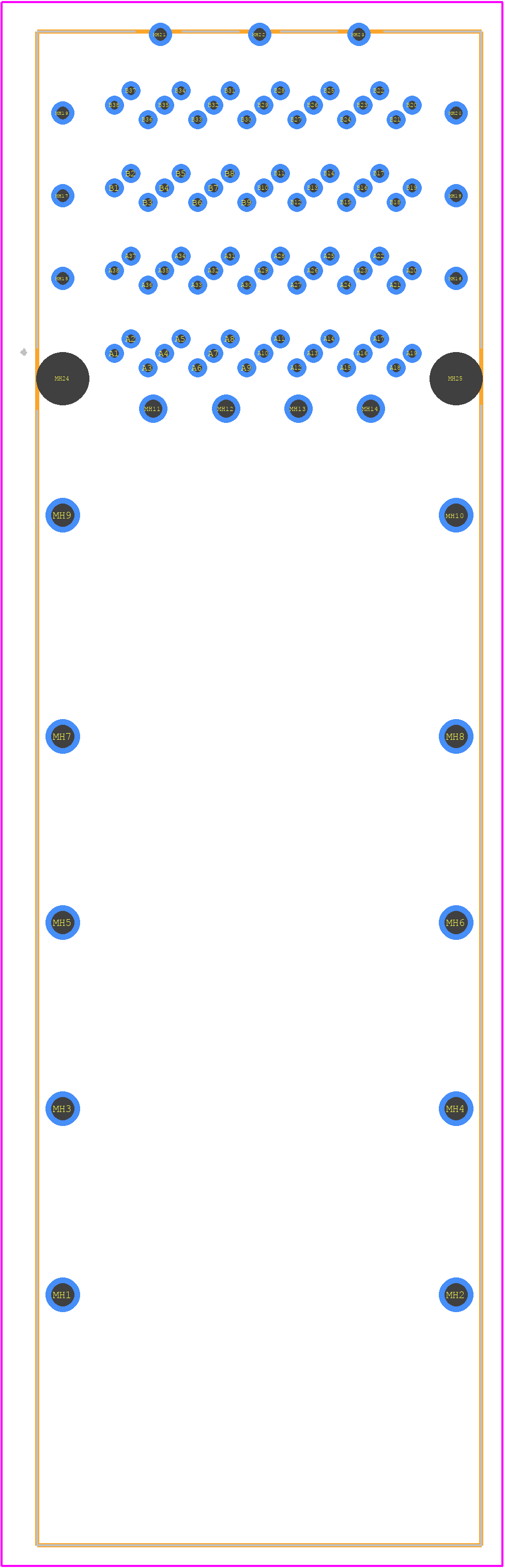

2227669-2 - TE Connectivity PCB footprint - Other - Other - 2227669-2-1
click to zoom
3D Models
2227669-2 - TE Connectivity - 3D model - Other - 2227669-2-1
click to zoom

2227669-2 Details

  • Manufacturer Part Number:

    2227669-2

  • Brand Name:

    TE Connectivity

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Unknown

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    TE Connectivity

  • Board Mounting Option:

    PEG

  • Body Breadth:

    1 inch

  • Body Depth:

    2.9 inch

  • Body Length:

    0.768 inch

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    SFP CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Pattern:

    STAGGERED

  • Contact Style:

    ZQSFP+ TYPE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    .5A

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD AND PANEL

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    6+6

  • Number of Ports:

    2

  • Number of Rows Loaded:

    2+2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    STAGGERED

  • PCB Contact Row Spacing:

    0.7 mm

  • Panel Mount:

    NO

  • Plating Thickness:

    30u inch

  • Polarization Key:

    POLARIZED HOUSING

  • Rated Current (Signal):

    0.5 A

  • Reference Standard:

    UL

  • Terminal Length:

    0.079 inch

  • Terminal Pitch:

    0.8 mm

  • Termination Type:

    PRESS FIT

  • Total Number of Contacts:

    76

  • UL Flammability Code:

    94V-0

2227669-2 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 2227669-2 connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels. However, it's essential to ensure proper mounting and secure the connector to prevent damage or disconnection.
  • The 2227669-2 connector has a rating of IP67, which means it is protected against dust and can withstand immersion in water up to 1 meter for 30 minutes. However, it's recommended to use additional protection measures, such as conformal coating or potting, for extended exposure to harsh environments.
  • The 2227669-2 connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F). It's essential to ensure that the connector is used within this temperature range to maintain its performance and reliability.
  • While the datasheet recommends using AWG 20-24 wire sizes, it's possible to use other wire sizes with the 2227669-2 connector. However, it's essential to ensure that the wire size is compatible with the connector's terminal design and that the wire is properly secured to prevent damage or disconnection.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

2227669-2 Overview

Use the download button to access the 2227669-2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 22276, or try a keyword search, such as Telecom and Datacom Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
