2227MC-14-03-10-F1 - Multicomp Pro

Description: MULTICOMP - 2227MC-14-03-10-F1 - SUPPORT DE CI DIP 14 VOIES 0.3

Download 2227MC-14-03-10-F1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2227MC-14-03-10-F1 - Multicomp Pro - PCB symbol
click to zoom
PCB Footprints

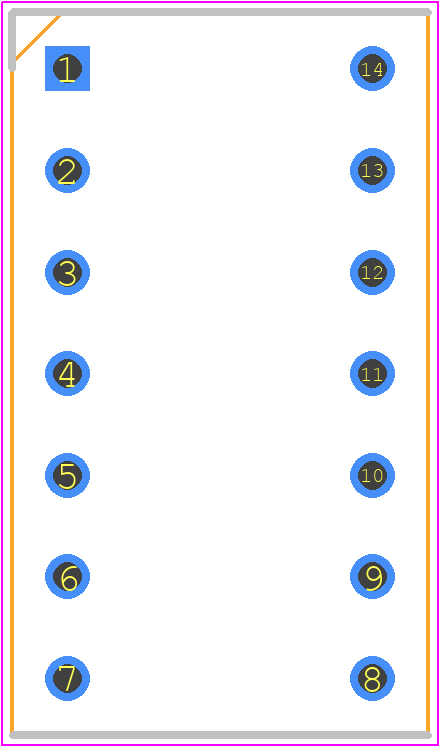

2227MC-14-03-10-F1 - Multicomp Pro PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - 2227MC-14-03-10-F1_A
click to zoom
3D Models
2227MC-14-03-10-F1 - Multicomp Pro - 3D model - Dual-In-Line Sockets - 2227MC-14-03-10-F1_A
click to zoom

2227MC-14-03-10-F1 Details

  • Manufacturer Part Number:

    2227MC-14-03-10-F1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    SPC Multicomp

  • YTEOL:

    7

  • Additional Feature:

    STANDARD: UL94-0

  • Contact Finish Termination:

    GOLD

  • Device Socket Type:

    IC SOCKET

  • Device Type Used On:

    DIP14

  • Housing Material:

    POLYBUTYLENE TEREPHTHALATE

  • JESD-609 Code:

    e4

  • Number of Contacts:

    14
