The recommended torque for the screw terminals is typically between 0.5-1.5 Nm (7-21 in-lbs), but it's best to consult the manufacturer's application notes or contact their support team for specific guidance.
Yes, the 2227MC-18-03-08-F1 connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels. However, it's essential to ensure proper mounting and secure the connector to prevent damage or disconnection.
The 2227MC-18-03-08-F1 connector has a IP67 rating, which means it's protected against dust and can withstand immersion in water up to 1 meter for 30 minutes. However, it's not recommended for continuous outdoor use or exposure to extreme temperatures, chemicals, or UV radiation without proper protection or additional sealing.
While the connector is designed for AWG 18-22 wires, it's possible to use smaller or larger wires with some adjustments. However, this may affect the connector's performance, and it's recommended to consult the manufacturer's application notes or contact their support team for guidance on wire size compatibility.
The screw terminals on the 2227MC-18-03-08-F1 connector are self-locking, but it's still recommended to use additional locking mechanisms, such as wire ties or cable clamps, to ensure secure connections and prevent accidental disconnection.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
2227MC-18-03-08-F1 Overview

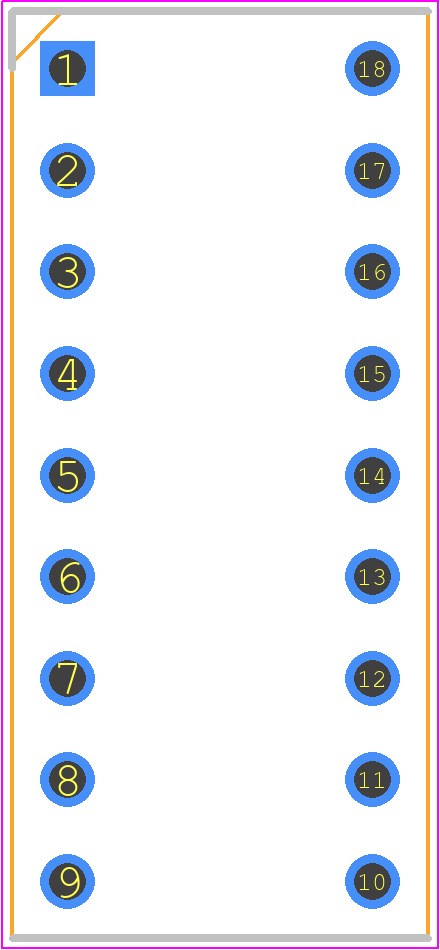

Use the download button to access the 2227MC-18-03-08-F1 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like 2227M,
or try a keyword search, such as Sockets and Chip Carriers
