2227MC-20-03-07-F1 - Multicomp Pro

Description: MULTICOMP - 2227MC-20-03-07-F1 - SOCKET IC, DIL, 0.3", 20WAY

Download 2227MC-20-03-07-F1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2227MC-20-03-07-F1 - Multicomp Pro - PCB symbol
click to zoom
PCB Footprints

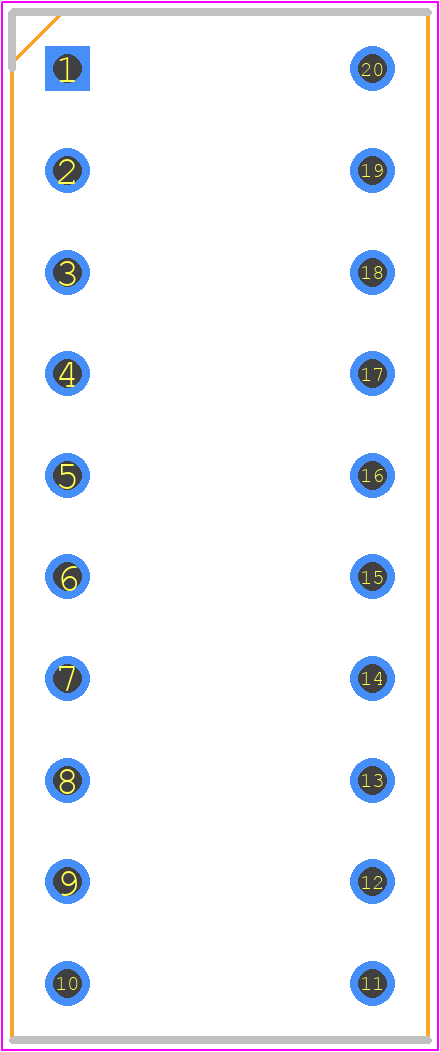

2227MC-20-03-07-F1 - Multicomp Pro PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - 2227MC Series - IC Sockets
click to zoom

2227MC-20-03-07-F1 Details

  • Manufacturer Part Number:

    2227MC-20-03-07-F1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    SPC Multicomp

  • YTEOL:

    7

  • Additional Feature:

    STANDARD: UL 94V-0

  • Body Breadth:

    0.4 inch

  • Body Depth:

    0.165 inch

  • Body Length:

    1 inch

  • Contact Configuration:

    RECTANGLE

  • Contact Style:

    RND PIN-SKT

  • Current Rating:

    3 A

  • Device Socket Type:

    IC SOCKET

  • Device Type Used On:

    DIP20

  • Dielectric Withstanding Voltage:

    1000VAC V

  • Housing Material:

    POLYBUTYLENE TEREPHTHALATE

  • Insulation Resistance:

    1000000000 Ω

  • Mating Contact Pitch:

    0.1 inch

  • Mounting Style:

    STRAIGHT

  • Number of Contacts:

    20

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -25 °C

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    0.30000000000000004 mm

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

2227MC-20-03-07-F1 Frequently Asked Questions (FAQs)

  • The recommended storage condition for 2227MC-20-03-07-F1 is in a dry, cool place with a temperature range of 10°C to 30°C and humidity below 70%.
  • Yes, the 2227MC-20-03-07-F1 is RoHS (Restriction of Hazardous Substances) compliant, meaning it meets the European Union's directive on the restriction of certain hazardous substances in electrical and electronic equipment.
  • The operating temperature range for 2227MC-20-03-07-F1 is -40°C to 125°C, making it suitable for a wide range of applications.
  • Yes, the 2227MC-20-03-07-F1 is designed to withstand high-vibration environments, making it suitable for applications such as industrial control systems, automotive systems, and more.
  • Yes, the 2227MC-20-03-07-F1 is compatible with lead-free soldering processes, making it suitable for modern manufacturing techniques.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

2227MC-20-03-07-F1 Overview

Use the download button to access the 2227MC-20-03-07-F1 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like 2227M, or try a keyword search, such as Sockets and Chip Carriers
