2227MC-20-03-F1 footprint, schematic symbol and 3D model by Multicomp Pro

Symbol

click to zoom

PCB Footprints

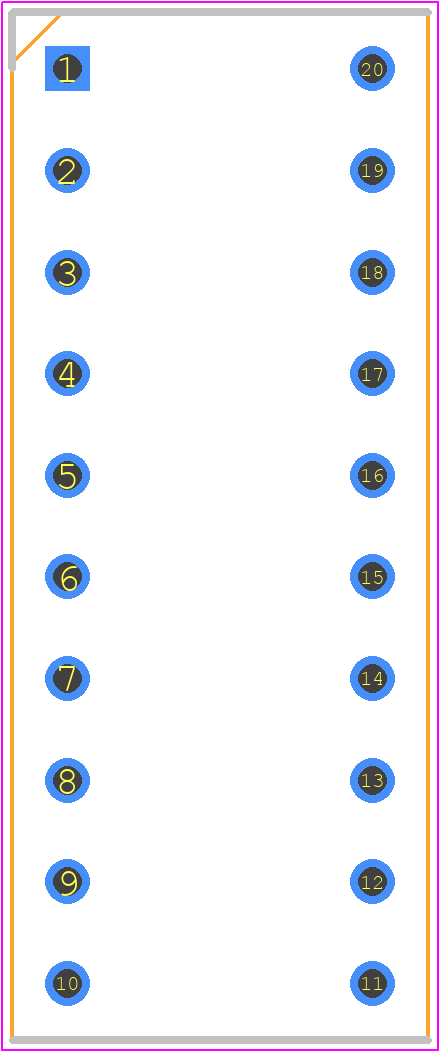

2227MC-20-03-F1 - Multicomp Pro PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - 2227MC Series - IC Sockets

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 2227MC-20-03-F1
Part Number 2227MC-20-03-F1
Manufacturer Multicomp Pro
Pin Count 20
Part Category Connector
Package Category Dual-In-Line Sockets
Footprint Name Dual-In-Line Sockets - 2227MC Series - IC Sockets
Released Date Sep 11, 2016
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

2227MC-20-03-F1 Details

Manufacturer Part Number:
2227MC-20-03-F1
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Manufacturer:
SPC Multicomp
YTEOL:
7
Additional Feature:
STANDARD: UL 94V-0
Body Breadth:
0.4 inch
Body Depth:
0.165 inch
Body Length:
1 inch
Contact Configuration:
RECTANGLE
Contact Style:
RND PIN-SKT
Current Rating:
3 A
Device Socket Type:
IC SOCKET
Device Type Used On:
DIP20
Dielectric Withstanding Voltage:
1000VAC V
Housing Material:
POLYBUTYLENE TEREPHTHALATE
Insulation Resistance:
1000000000 Ω
Mating Contact Pitch:
0.1 inch
Mounting Style:
STRAIGHT
Number of Contacts:
20
Operating Temperature-Max:
105 °C
Operating Temperature-Min:
-25 °C
PCB Contact Pattern:
RECTANGULAR
PCB Contact Row Spacing:
0.30000000000000004 mm
Terminal Pitch:
2.54 mm
Termination Type:
SOLDER

2227MC-20-03-F1 Frequently Asked Questions (FAQs)

The recommended storage condition for 2227MC-20-03-F1 is in a dry, cool place with a temperature range of 10°C to 30°C and humidity below 70%.
Yes, the 2227MC-20-03-F1 component is RoHS (Restriction of Hazardous Substances) compliant, meaning it meets the European Union's directive on the restriction of certain hazardous substances in electrical and electronic equipment.
The typical lead time for delivery of 2227MC-20-03-F1 can vary depending on the supplier and the quantity ordered, but it is usually around 2-4 weeks.
While the 2227MC-20-03-F1 is a robust component, it is not specifically designed for high-vibration applications. However, it can still be used in such applications with proper mounting and securing to prevent mechanical stress.
The 2227MC-20-03-F1 is designed for general-purpose use and may not be suitable for harsh environments such as extreme temperatures, high humidity, or exposure to chemicals. However, it can be used in industrial environments with proper protection and shielding.

Trust Checks

Expert Contribution

System Verified

Community Approved

2227MC-20-03-F1 Overview

Use the download button to access the 2227MC-20-03-F1 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 2227M, or try a keyword search, such as Sockets and Chip Carriers
