2227MC-24-03-06-F1 - Multicomp Pro

Description: 24 Contacts, DIP Socket, 2.54 mm, 2227MC, 7.62 mm, Beryllium Copper

Download 2227MC-24-03-06-F1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2227MC-24-03-06-F1 - Multicomp Pro - PCB symbol
click to zoom
PCB Footprints

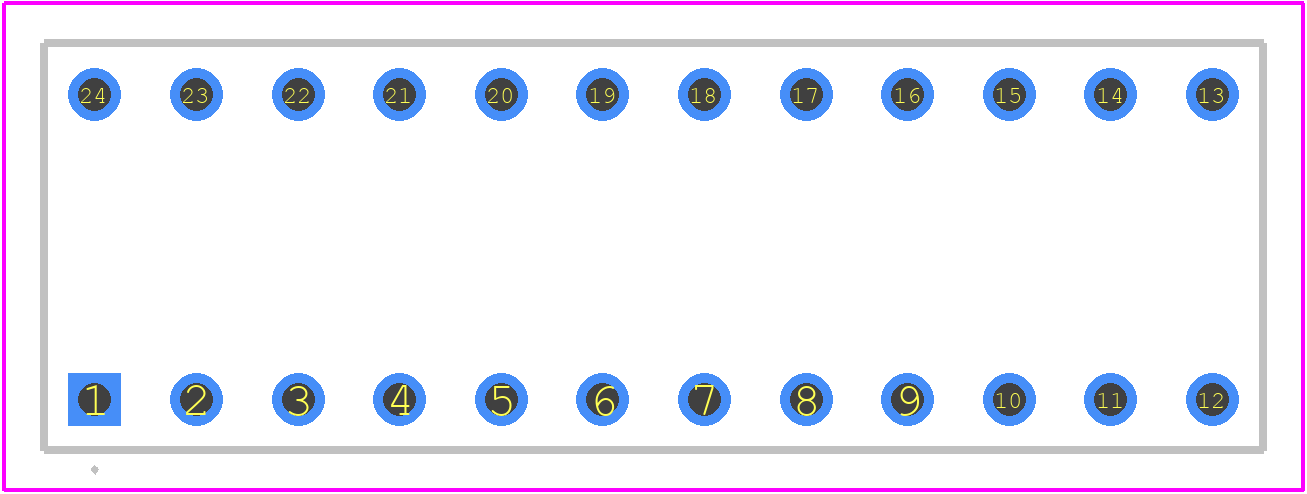

2227MC-24-03-06-F1 - Multicomp Pro PCB footprint - Other - Other - 2227MC-24-03-06-F1-2
click to zoom
3D Models
2227MC-24-03-06-F1 - Multicomp Pro - 3D model - Other - 2227MC-24-03-06-F1-2
click to zoom

2227MC-24-03-06-F1 Details

  • Manufacturer Part Number:

    2227MC-24-03-06-F1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    SPC Multicomp

  • YTEOL:

    7.57

  • Additional Feature:

    STANDARD: UL 94V-0

  • Body Breadth:

    0.4 inch

  • Body Depth:

    0.165 inch

  • Body Length:

    1.2 inch

  • Contact Configuration:

    RECTANGLE

  • Contact Style:

    RND PIN-SKT

  • Current Rating:

    3 A

  • Device Socket Type:

    IC SOCKET

  • Device Type Used On:

    DIP24

  • Dielectric Withstanding Voltage:

    1000VAC V

  • Housing Material:

    POLYBUTYLENE TEREPHTHALATE

  • Insulation Resistance:

    1000000000 Ω

  • Mating Contact Pitch:

    0.1 inch

  • Mounting Style:

    STRAIGHT

  • Number of Contacts:

    24

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -25 °C

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    0.30000000000000004 mm

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

2227MC-24-03-06-F1 Frequently Asked Questions (FAQs)

  • The recommended storage temperature for 2227MC-24-03-06-F1 is -40°C to 125°C, as per the manufacturer's guidelines.
  • Yes, the 2227MC-24-03-06-F1 component is RoHS (Restriction of Hazardous Substances) compliant, meaning it meets the EU's standards for reducing hazardous substances in electronic components.
  • The typical lead time for delivery of 2227MC-24-03-06-F1 can vary depending on the supplier and the quantity ordered. However, it is usually around 2-4 weeks for standard orders.
  • The 2227MC-24-03-06-F1 is designed to withstand moderate vibrations, but it's essential to consult the manufacturer's specifications and perform thorough testing to ensure its reliability in high-vibration environments.
  • Yes, the 2227MC-24-03-06-F1 is compatible with lead-free soldering processes, making it suitable for modern manufacturing requirements.
