2227MC-28-03-05-F1 - Multicomp Pro

Description: MULTICOMP - 2227MC-28-03-05-F1 - SOCKET IC, DIL, 0.3", 28WAY

Download 2227MC-28-03-05-F1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2227MC-28-03-05-F1 - Multicomp Pro - PCB symbol
click to zoom
PCB Footprints

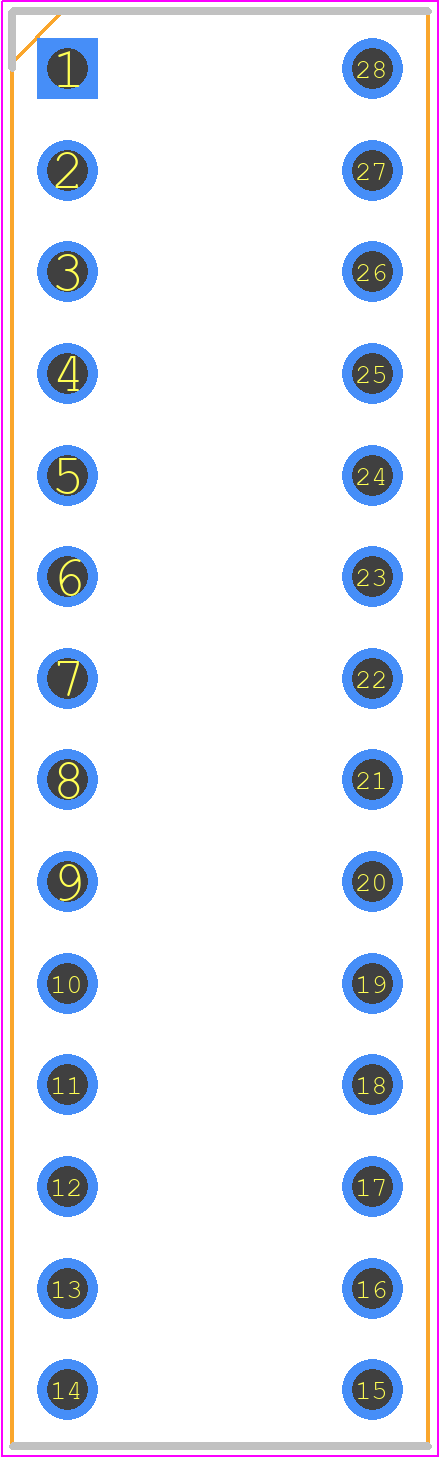

2227MC-28-03-05-F1 - Multicomp Pro PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - 2227MC-28-03-05-F1
click to zoom
3D Models
2227MC-28-03-05-F1 - Multicomp Pro - 3D model - Dual-In-Line Sockets - 2227MC-28-03-05-F1
click to zoom

2227MC-28-03-05-F1 Details

  • Manufacturer Part Number:

    2227MC-28-03-05-F1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    SPC Multicomp

  • YTEOL:

    7.5

  • Additional Feature:

    STANDARD: UL 94V-0

  • Body Breadth:

    0.4 inch

  • Body Depth:

    0.165 inch

  • Body Length:

    1.4 inch

  • Contact Configuration:

    RECTANGLE

  • Contact Finish Mating:

    TIN

  • Contact Finish Termination:

    TIN

  • Contact Style:

    RND PIN-SKT

  • Current Rating:

    3 A

  • Device Socket Type:

    IC SOCKET

  • Device Type Used On:

    DIP28

  • Dielectric Withstanding Voltage:

    1000VAC V

  • Housing Material:

    POLYBUTYLENE TEREPHTHALATE

  • Insulation Resistance:

    1000000000 Ω

  • JESD-609 Code:

    e3

  • Mating Contact Pitch:

    0.1 inch

  • Mounting Style:

    STRAIGHT

  • Number of Contacts:

    28

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -25 °C

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    0.30000000000000004 mm

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

2227MC-28-03-05-F1 Frequently Asked Questions (FAQs)

  • The recommended storage temperature for 2227MC-28-03-05-F1 is -40°C to 125°C.
  • Yes, the 2227MC-28-03-05-F1 component is RoHS (Restriction of Hazardous Substances) compliant, meaning it meets the EU's standards for reducing hazardous substances in electronic components.
  • The operating temperature range for 2227MC-28-03-05-F1 is -40°C to 105°C.
  • Yes, the 2227MC-28-03-05-F1 component is designed for high-reliability applications, such as aerospace, defense, and industrial control systems, due to its high-quality materials and manufacturing process.
  • The 2227MC-28-03-05-F1 component is designed to operate in a humid environment, but it's recommended to follow proper handling and storage procedures to prevent moisture-related issues.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

2227MC-28-03-05-F1 Overview

Use the download button to access the 2227MC-28-03-05-F1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 2227M, or try a keyword search, such as Sockets and Chip Carriers
