2227MC-28-06-07-F1 footprint, schematic symbol and 3D model by Multicomp Pro

Symbol

click to zoom

PCB Footprints

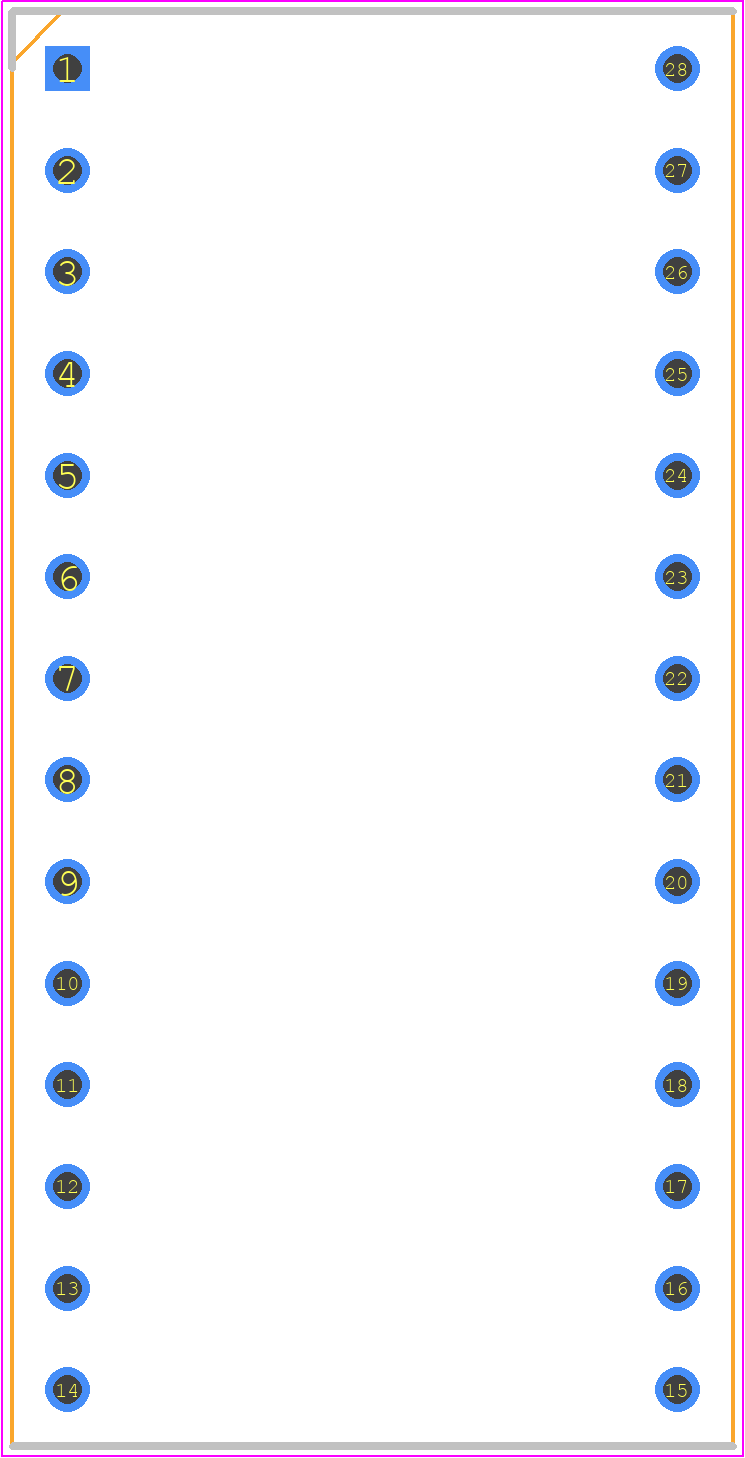

2227MC-28-06-07-F1 - Multicomp Pro PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - 2227MC-28-06-07-F1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 2227MC-28-06-07-F1
Part Number 2227MC-28-06-07-F1
Manufacturer Multicomp Pro
Pin Count 28
Part Category Connector
Package Category Dual-In-Line Sockets
Footprint Name Dual-In-Line Sockets - 2227MC-28-06-07-F1
Released Date Apr 18, 2018
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

2227MC-28-06-07-F1 Details

Manufacturer Part Number:
2227MC-28-06-07-F1
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Manufacturer:
SPC Multicomp
YTEOL:
7.5
Additional Feature:
STANDARD: UL 94V-0
Body Breadth:
0.7 inch
Body Depth:
0.165 inch
Body Length:
1.4 inch
Contact Configuration:
RECTANGLE
Contact Style:
RND PIN-SKT
Current Rating:
3 A
Device Socket Type:
IC SOCKET
Device Type Used On:
DIP28
Dielectric Withstanding Voltage:
1000VAC V
Housing Material:
POLYBUTYLENE TEREPHTHALATE
Insulation Resistance:
1000000000 Ω
Mating Contact Pitch:
0.1 inch
Mounting Style:
STRAIGHT
Number of Contacts:
28
Operating Temperature-Max:
105 °C
Operating Temperature-Min:
-25 °C
PCB Contact Pattern:
RECTANGULAR
PCB Contact Row Spacing:
0.6000000000000001 mm
Terminal Pitch:
2.54 mm
Termination Type:
SOLDER

2227MC-28-06-07-F1 Frequently Asked Questions (FAQs)

The recommended storage condition for 2227MC-28-06-07-F1 is in a dry, cool place with a temperature range of 20°C to 30°C (68°F to 86°F) and humidity below 60%.
Yes, the 2227MC-28-06-07-F1 is RoHS (Restriction of Hazardous Substances) compliant, meaning it meets the European Union's directive on the restriction of certain hazardous substances in electrical and electronic equipment.
The operating temperature range for 2227MC-28-06-07-F1 is -40°C to 125°C (-40°F to 257°F), making it suitable for a wide range of applications.
Yes, the 2227MC-28-06-07-F1 is designed to withstand high-vibration environments, making it suitable for applications such as industrial control systems, automotive systems, and aerospace systems.
Yes, the 2227MC-28-06-07-F1 is compatible with lead-free soldering, making it suitable for applications that require environmentally friendly manufacturing processes.

Trust Checks

Expert Contribution

System Verified

Community Approved

2227MC-28-06-07-F1 Overview

Use the download button to access the 2227MC-28-06-07-F1 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 2227M, or try a keyword search, such as Sockets and Chip Carriers
