2227MC-32-06-06-F1 - Multicomp Pro

Description: IC & Component Socket, 32 Contacts, DIP, 2.54 mm, 2227MC, 15.24 mm, Beryllium Copper

Download 2227MC-32-06-06-F1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

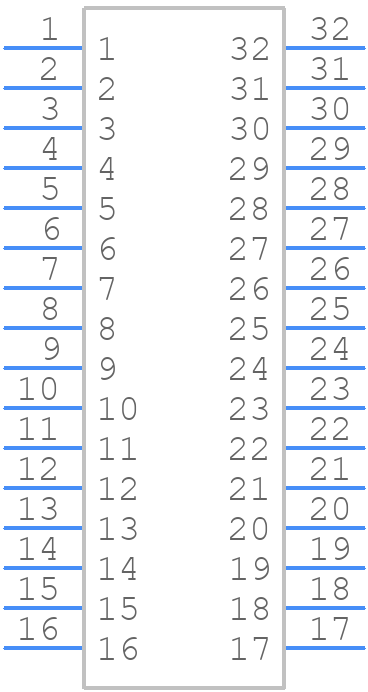

2227MC-32-06-06-F1 - Multicomp Pro - PCB symbol
click to zoom
PCB Footprints

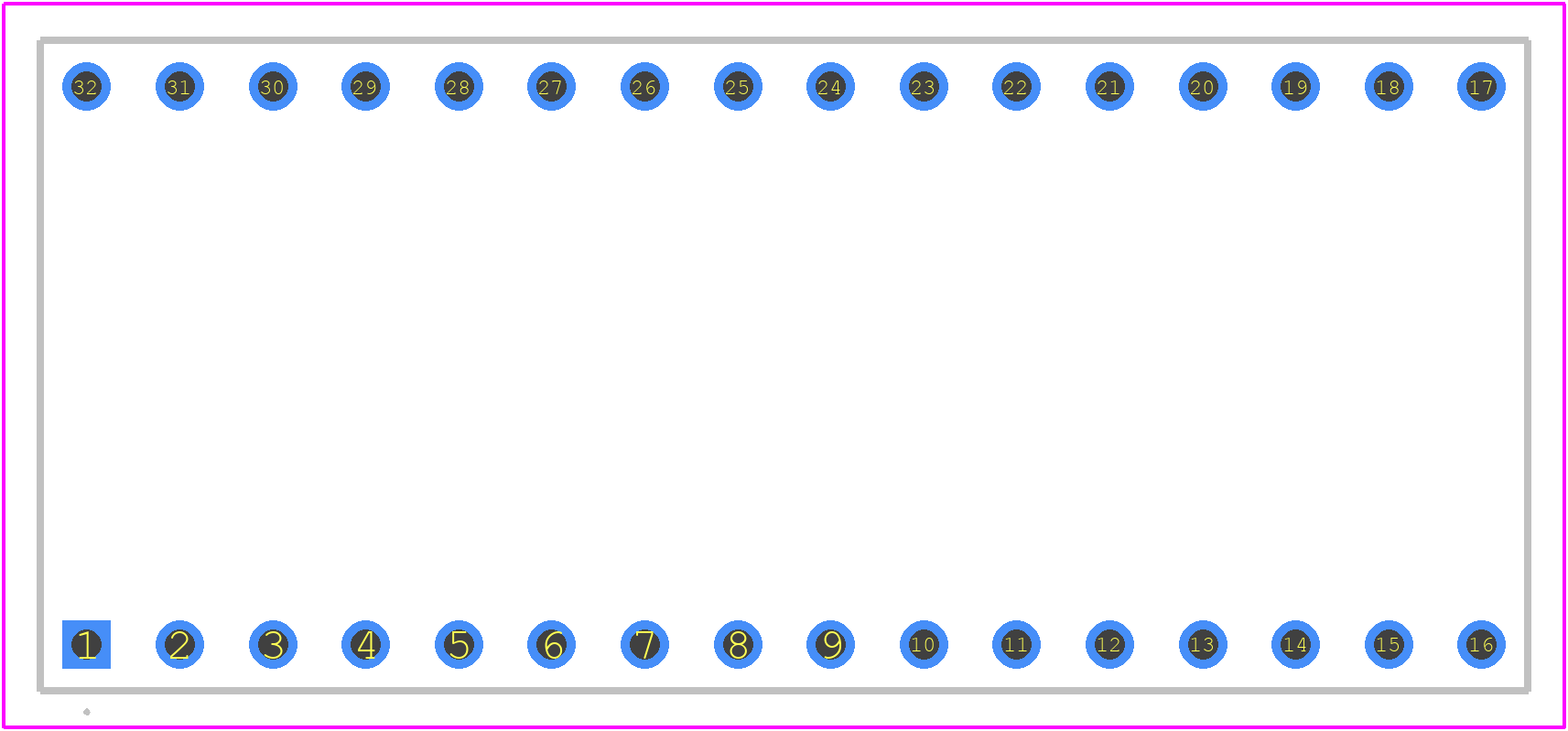

2227MC-32-06-06-F1 - Multicomp Pro PCB footprint - Other - Other - 2227MC-32-06-06-F1
click to zoom
3D Models
2227MC-32-06-06-F1 - Multicomp Pro - 3D model - Other - 2227MC-32-06-06-F1
click to zoom

2227MC-32-06-06-F1 Details

  • Manufacturer Part Number:

    2227MC-32-06-06-F1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    SPC Multicomp

  • YTEOL:

    7

  • Additional Feature:

    STANDARD: UL 94V-0

  • Body Breadth:

    0.7 inch

  • Body Depth:

    0.165 inch

  • Body Length:

    1.6 inch

  • Contact Configuration:

    RECTANGLE

  • Contact Finish Mating:

    TIN

  • Contact Finish Termination:

    TIN

  • Contact Style:

    RND PIN-SKT

  • Current Rating:

    3 A

  • Device Socket Type:

    IC SOCKET

  • Device Type Used On:

    DIP32

  • Dielectric Withstanding Voltage:

    1000VAC V

  • Housing Material:

    POLYBUTYLENE TEREPHTHALATE

  • Insulation Resistance:

    1000000000 Ω

  • JESD-609 Code:

    e3

  • Mating Contact Pitch:

    0.1 inch

  • Mounting Style:

    STRAIGHT

  • Number of Contacts:

    32

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -25 °C

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    0.6000000000000001 mm

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER
