2229486-1 - TE Connectivity

Description: PCB Mount Header, Right Angle, Wire-to-Board, 50 Position, 3 mm / 2.4 mm [.094 in / .11 in] Centerline, Fully Shrouded, Tin, Through Hole - Solder

Download 2229486-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2229486-1 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

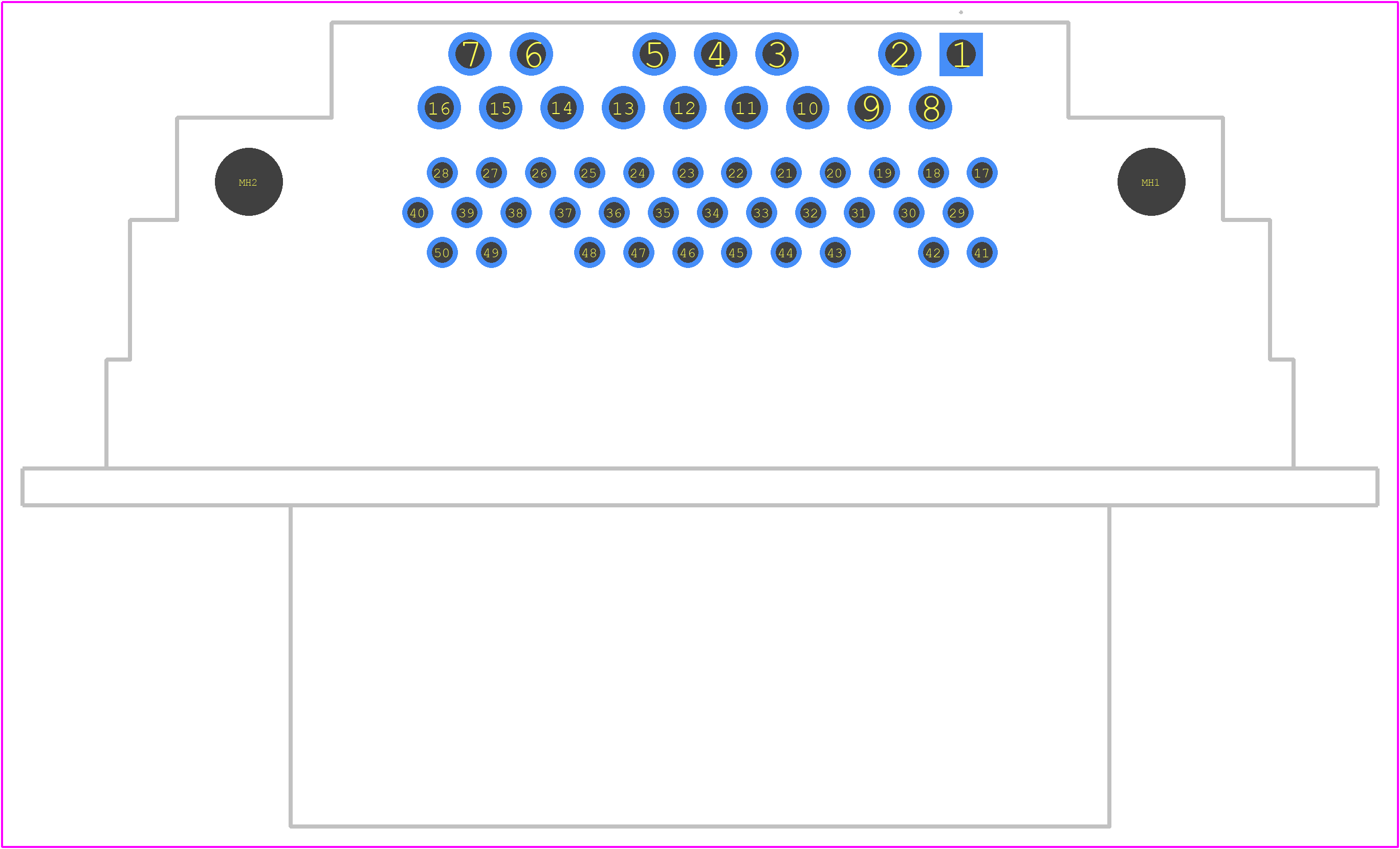

2229486-1 - TE Connectivity PCB footprint - Other - Other - 2229486-1-5
click to zoom
3D Models
2229486-1 - TE Connectivity - 3D model - Other - 2229486-1-5
click to zoom

2229486-1 Details

  • Manufacturer Part Number:

    2229486-1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    14 Weeks, 6 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    7

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    4A

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Number of Rows Loaded:

    5

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Rated Current (Signal):

    4 A

  • Terminal Pitch:

    2.4 mm

  • Termination Type:

    SOLDER

2229486-1 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals.
  • Yes, the 2229486-1 connector is designed to withstand vibrations and is suitable for use in high-vibration environments, such as in industrial or automotive applications.
  • While the datasheet specifies AWG 20-24 wire sizes, the connector can accommodate other wire sizes with the use of adapters or by consulting with TE Connectivity's technical support team.
  • The operating temperature range for the 2229486-1 connector is -40°C to 125°C (-40°F to 257°F).
  • The 2229486-1 connector has a IP67 rating, which means it is protected against dust and can withstand immersion in water up to 1 meter (3.3 feet) for 30 minutes. However, it's recommended to consult with TE Connectivity's technical support team for specific environmental requirements.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

2229486-1 Overview

Use the download button to access the 2229486-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 22294, or try a keyword search, such as Headers and Edge Type Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
