- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for 223004-1
- Part Number 223004-1
- Manufacturer TE Connectivity
- Pin Count 30
- Part Category Connector
- Package Category Other

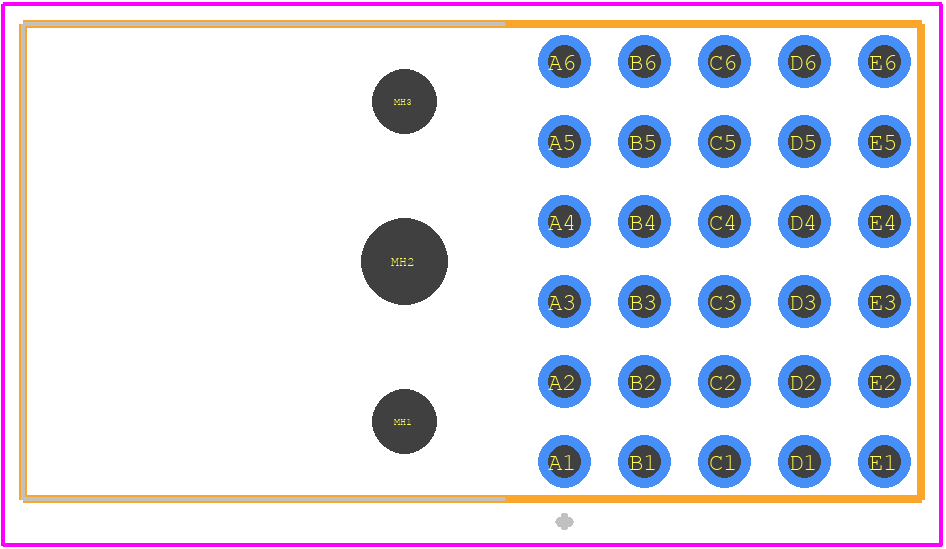

- Footprint Name Other - 223004-1-2
- Released Date Nov 13, 2019
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
223004-1 Details
-
Manufacturer Part Number:
223004-1
-
Brand Name:
AMP
-
Pbfree Code:
No
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.40
-
Factory Lead Time:
30 Weeks, 4 Days
-
Manufacturer:
TE Connectivity
-
YTEOL:
6
-
Additional Feature:
Z-PACK
-
Board Mounting Option:
PEG
223004-1 Frequently Asked Questions (FAQs)
-
The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
-
Yes, the 223004-1 connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels. However, it's essential to ensure proper mounting and secure the connector to prevent damage or disconnection.
-
While the datasheet specifies AWG 20-24 wire sizes, the connector can accommodate smaller wire sizes (e.g., AWG 26-28) with the use of wire adapters or by following TE Connectivity's wire stripping and termination guidelines. However, it's crucial to verify the wire size and termination method to ensure reliable connections.
-
The 223004-1 connector is designed to operate in a temperature range of -40°C to 125°C (-40°F to 257°F) and can withstand humidity levels up to 95%. However, it's essential to consider the specific environmental conditions of your application and consult with TE Connectivity or a qualified engineer to ensure the connector's suitability.
-
Yes, to ensure reliable connections and prevent damage to the connector or PCB, it's essential to follow TE Connectivity's recommended PCB layout guidelines, including keeping the PCB traces away from the connector's mounting holes and ensuring sufficient clearance around the connector.
Trust Checks
Expert Contribution
System Verified
Community Approved
223004-1 Overview

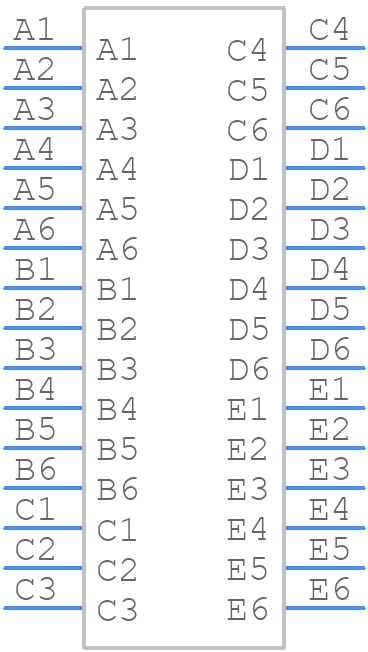

Use the download button to access the 223004-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 22300,
or try a keyword search, such as Headers and Edge Type Connectors
