224-1275-19-0602J - 3M

Description: 3M, 2241275 2.54mm Pitch Straight 24 Way, Through Hole ZIF IC Dip Socket, 1A

Download 224-1275-19-0602J Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
224-1275-19-0602J - 3M - PCB symbol
click to zoom
PCB Footprints

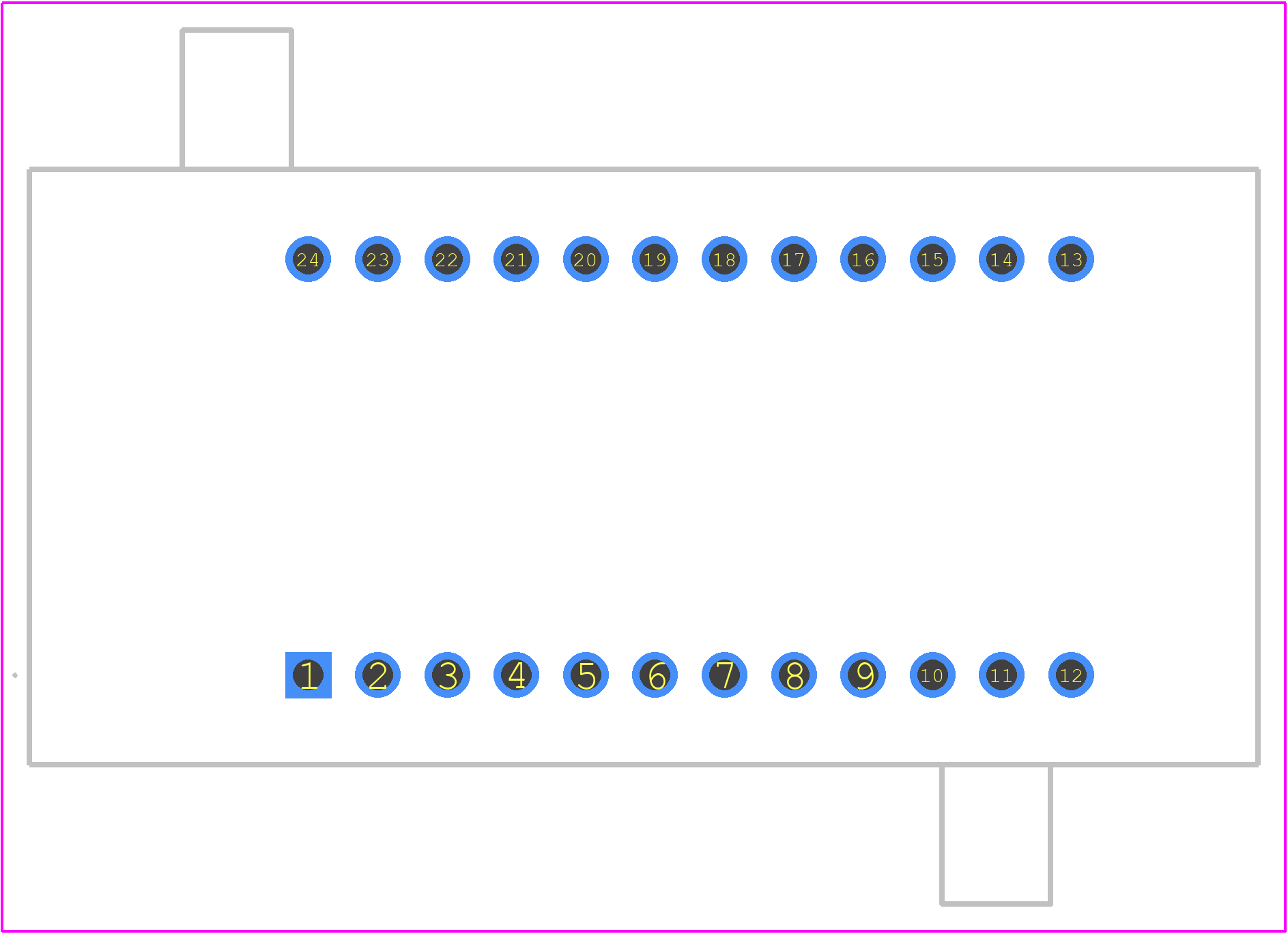

224-1275-19-0602J - 3M PCB footprint - Other - Other - 224-1275-19-0602J-3
click to zoom

224-1275-19-0602J Details

  • Manufacturer Part Number:

    224-1275-19-0602J

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    3M Interconnect

  • YTEOL:

    7.57

  • Additional Feature:

    STANDARD: UL 94V-0

  • Contact Finish Mating:

    GOLD (30) OVER NICKEL (50)

  • Contact Finish Termination:

    GOLD (30) OVER NICKEL (50)

  • Contact Material:

    BERYLLIUM COPPER

  • Device Socket Type:

    IC SOCKET

  • Device Type Used On:

    DIP24

  • Housing Material:

    GLASS FILLED POLYSULFONE

  • JESD-609 Code:

    e4

  • Number of Contacts:

    24

224-1275-19-0602J Frequently Asked Questions (FAQs)

  • The recommended torque for screw termination is 0.5-1.5 Nm (4-12 in-lbs) according to 3M's application notes.
  • Yes, the 224-1275-19-0602J connector is designed to withstand high-vibration environments, with a tested vibration resistance of 10-2000 Hz, 10 G peak acceleration.
  • The connector is rated for operating temperatures of -40°C to 125°C and can withstand humidity up to 95% RH. However, it's recommended to consult 3M's environmental testing reports for specific application requirements.
  • The 224-1275-19-0602J connector is rated for a minimum of 500 mating cycles, making it suitable for applications that require frequent connections and disconnections.
  • Yes, the connector is designed for automated assembly and can be used with standard pick-and-place machines and wire termination equipment.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

224-1275-19-0602J Overview

Use the download button to access the 224-1275-19-0602J schematic symbol and PCB footprint.
