Part Image

224-5248-00-0602J - 3M

Description: 3M Textool 2.54mm Pitch Vertical 24 Way, Through Hole Closed Frame ZIF IC Dip Socket, 1A

Download 224-5248-00-0602J Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
224-5248-00-0602J - 3M - PCB symbol
click to zoom
PCB Footprints

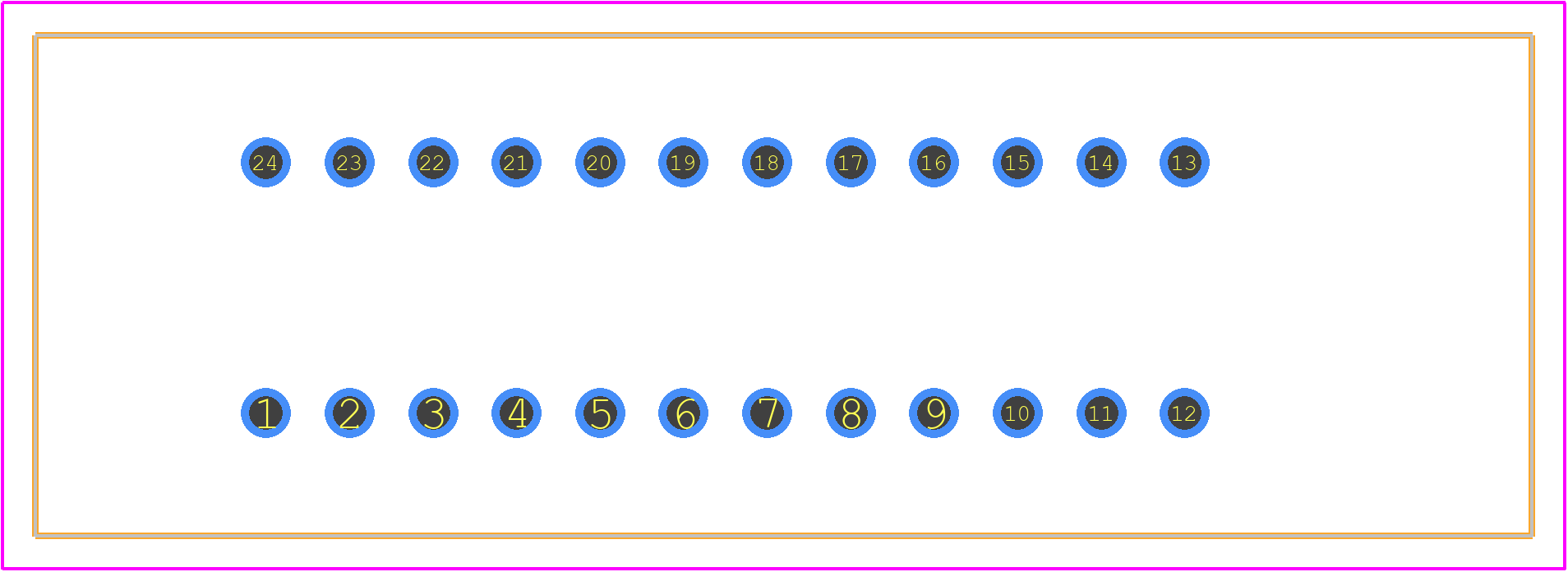

224-5248-00-0602J - 3M PCB footprint - Other - Other - 224-5248-00-0602J-4
click to zoom
3D Models
224-5248-00-0602J - 3M - 3D model - Other - 224-5248-00-0602J-4
click to zoom

224-5248-00-0602J Details

  • Manufacturer Part Number:

    224-5248-00-0602J

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    3M Interconnect

  • YTEOL:

    7.57

  • Additional Feature:

    STANDARD: UL 94V-0

  • Contact Finish Mating:

    GOLD (30) OVER NICKEL (50)

  • Contact Finish Termination:

    GOLD (30) OVER NICKEL (50)

  • Contact Material:

    BERYLLIUM COPPER

  • Device Socket Type:

    IC SOCKET

  • Device Type Used On:

    DIP24

  • Housing Material:

    GLASS FILLED POLYSULFONE

  • JESD-609 Code:

    e4

  • Number of Contacts:

    24

224-5248-00-0602J Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4-12 in-lbs).
  • Yes, the 224-5248-00-0602J connector is designed to withstand vibrations and is suitable for use in high-vibration environments.
  • The operating temperature range for the 224-5248-00-0602J connector is -40°C to 105°C (-40°F to 221°F).
  • Yes, the 224-5248-00-0602J connector is suitable for outdoor use and can withstand exposure to moisture and humidity.
  • No, the 224-5248-00-0602J connector is designed for use with wire sizes AWG 20-24. Using a larger wire size may not provide a reliable connection.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

224-5248-00-0602J Overview

Use the download button to access the 224-5248-00-0602J schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 224-5, or try a keyword search, such as Sockets and Chip Carriers
