2246041-1 - TE Connectivity

Description: Configuration Features: Port Matrix Configuration 1 x 1 | Number of Positions 22 | Number of Ports 1 | Contact Features: Contact Mating Area Plating Material Gold | Contact Current Rating (Max) .5 AMP | Tail Plating Material Tin | Electrical Characteristics: Data Rate (Max) 10 GBS | Housing Features: Centerline (Pitch) .88 MM | Centerline (Pitch) .034 INCH | Cage Material Copper Alloy | Industry Standards: UL Flammability Rating UL 94V-0 | Operation/Application: Pluggable I/O Applications Micro SFP+ | Circu

Download 2246041-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

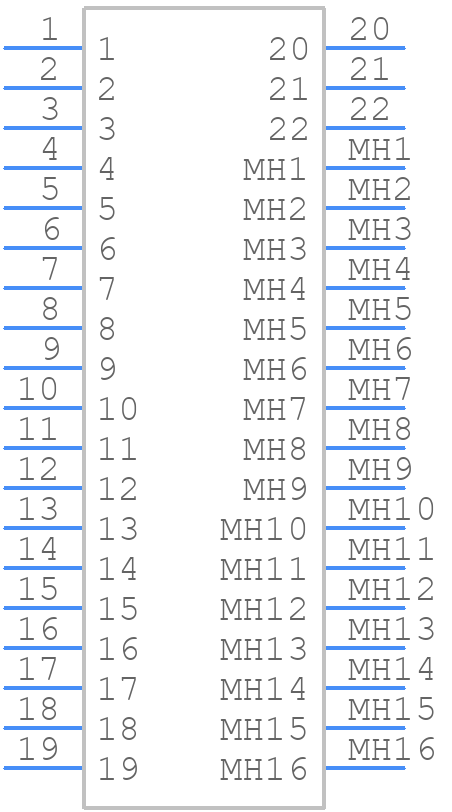

2246041-1 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

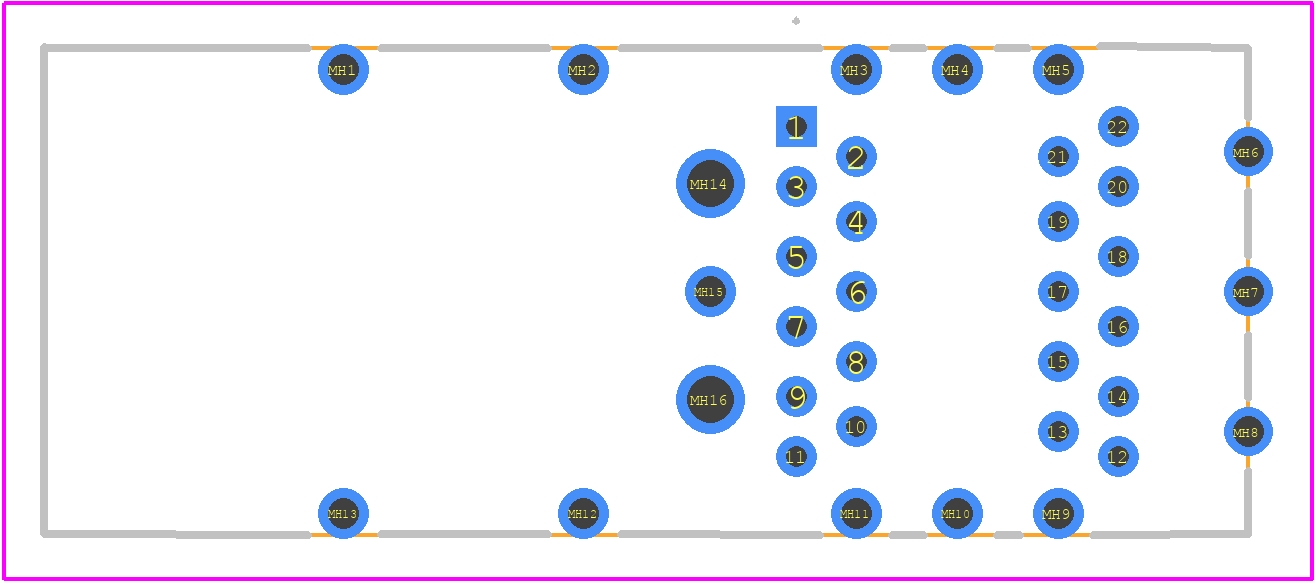

2246041-1 - TE Connectivity PCB footprint - Other - Other - 2246041-1-2
click to zoom
3D Models
2246041-1 - TE Connectivity - 3D model - Other - 2246041-1-2
click to zoom

2246041-1 Details

  • Manufacturer Part Number:

    2246041-1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    20 Weeks, 2 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    0

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    .5A

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Rated Current (Signal):

    0.5 A

  • Reference Standard:

    UL

  • Terminal Length:

    0.063 inch

  • Terminal Pitch:

    0.88 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    22

  • UL Flammability Code:

    94V-0

2246041-1 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 2246041-1 connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 vibration standard, making it suitable for use in applications such as transportation, industrial, and aerospace.
  • While the datasheet specifies AWG 20-24 wire sizes, the connector can accommodate a range of wire sizes. However, it's essential to consult with TE Connectivity or a qualified engineer to determine the suitability of the connector for specific wire sizes and applications.
  • The 2246041-1 connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F). This makes it suitable for use in a wide range of applications, from industrial to automotive and aerospace.
  • Yes, it's recommended to clean the connector contacts with a soft brush and a mild detergent solution to prevent corrosion and ensure reliable connections. Avoid using harsh chemicals or abrasive materials that can damage the connector.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

2246041-1 Overview

Use the download button to access the 2246041-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 22460, or try a keyword search, such as Headers and Edge Type Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
